STARTECH FIBER MEDIA CONVERTER - W/ SFP MCM1110MMLC
- Gyártó: STARTECH
- Microstore cikkszám:
- Gyári szám: MCM1110MMLC
- Garancia: 24 hónap
- Készlet információ:
Mai rendelés esetén
🏪 Átvétel üzletünkben (Vecsés): júl. 15. (szerda)
🚚 Házhozszállítás: júl. 16. (csütörtök)
📦 FoxPost csomagautomata: júl. 17. (péntek)
-
38 980 Ft
-
Nettó: 30 693 Ft
💡 Jó tudni: üzletünkben azonnal a „Raktáron” jelzésű termékek vehetők át, a többit rendelésére szerezzük be: az „1–2” és „2–3 munkanap” jelzésűek hazai raktárból érkeznek, a „3–14 nap” jelzésűek pedig általában külföldi partnereinktől — ezért hosszabb a beszerzési idejük. Amint a termék átvehető, értesítjük. Személyes átvétel előtt kérjük, várja meg ezt az értesítést, hogy biztosan ne jöjjön hiába — ha pedig sürgős, keressen minket bizalommal, szívesen segítünk!

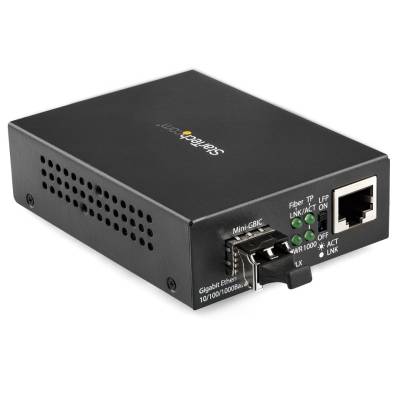

This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
Cost-effective extension and dependable performance
The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.
Versatile connections for broad compatibility
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.
Easy installation and compact convenience
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.
The MCM1110MMLC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Hardware
Industry Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX
IEEE 802.3z 1000BASE-LX
PoE
No
WDM
No
Performance
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Fiber Operating Mode
Full-Duplex
Fiber Type
Multi Mode
Max Transfer Distance
550 m (1804 ft)
Maximum Data Transfer Rate
1 Gbps
MTBF
> 50,000 hours at 25°C
Wavelength
850nm
Connector(s)
Local Unit Connectors
1 - RJ-45 Female
1 - Fiber Optic LC Duplex Female

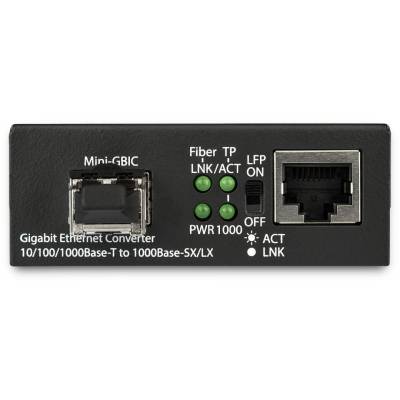

Indicators
LED Indicators
1 - Power
1 - Fiber Port Link/Act
1 - Copper Port Link/Act
1 - 1000 Mbps
Power
Center Tip Polarity
Positive
Input Current
1 A
Input Voltage
100 ~ 240 AC
Output Current
2 A
Output Voltage
5 DC
Plug Type
N
Power Consumption
5 W Max
Power Source
AC Adapter Included
Environmental
Humidity
5~95% RH (Non-condensing)
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Physical Characteristics
Color
Brown
Enclosure Type
Steel
Product Height
1 in [26 mm]
Product Length
8.1 in [205 mm]
Product Weight
7.1 oz [200 g]
Product Width
2.8 in [70 mm]
Packaging Information
Shipping (Package) Weight
18 oz [510 g]
What's in the Box
Included in Package
1 - Gigabit Ethernet fiber media converter - MM LC
1 - universal power adapter (NA/EU/UK/AU)
Cost-effective extension and dependable performance
The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.
Versatile connections for broad compatibility
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.
Easy installation and compact convenience
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.
The MCM1110MMLC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
