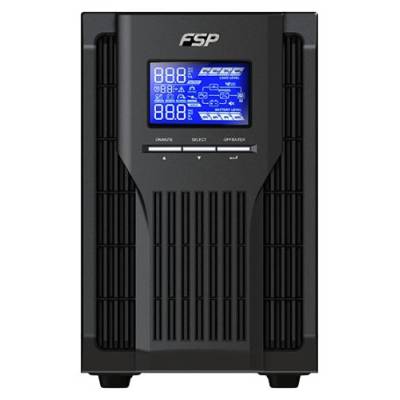

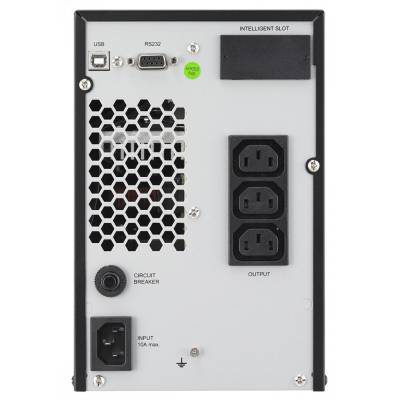

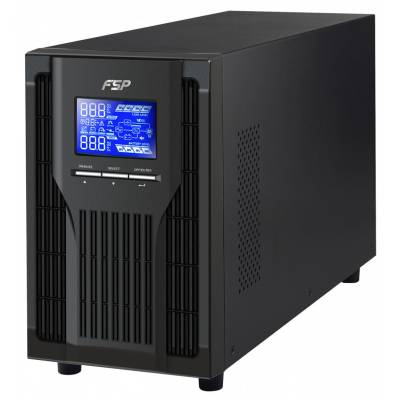

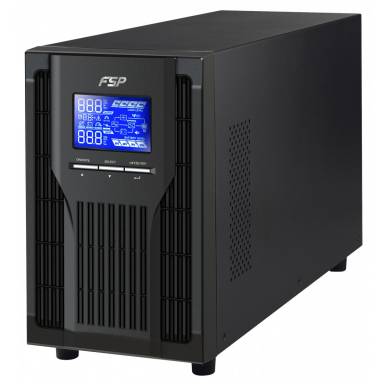

UPS Fortron Champ 1K Tower, 1000VA PPF8001305
- Gyártó: UPS
- Microstore cikkszám:
- Gyári szám: CHAMP 1K TOWER IEC PPF8001305
- Garancia: 24 hónap
- Készlet információ:
Mai rendelés esetén
🏪 Átvétel üzletünkben (Vecsés): aug. 14. (péntek)
🚚 Házhozszállítás: aug. 17. (hétfő)
📦 FoxPost csomagautomata: aug. 18. (kedd)
-
101 968 Ft
-
Nettó: 80 290 Ft
💡 Jó tudni: üzletünkben azonnal a „Raktáron” jelzésű termékek vehetők át, a többit rendelésére szerezzük be: az „1–2” és „2–3 munkanap” jelzésűek hazai raktárból érkeznek, a „3–14 nap” jelzésűek pedig általában külföldi partnereinktől — ezért hosszabb a beszerzési idejük. Amint a termék átvehető, értesítjük. Személyes átvétel előtt kérjük, várja meg ezt az értesítést, hogy biztosan ne jöjjön hiába — ha pedig sürgős, keressen minket bizalommal, szívesen segítünk!
SOS UPS forródrót :
Telefon : +36 1 236-3060
Fax : +36 1 349-6721
Email : sosups@sosups.hu
Képzett mérnökök segítenek az FSP UPS üzemeltetésével kapcsolatos problémák megoldásában. A garanciális ügyintézés továbbra is nálunk történik.
FSP Champ is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller. Champ also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
Features:
True double-conversion
Microprocessor control optimizes reliability
Input power factor correction
Output power factor 0.9
Wide input voltage (120 V – 300 V)
Converter mode available
ECO mode for energy saving
Generator compatible
Charger capacity expansion to 6A for long-run models
Smart SNMP works well with either USB or RS-232 together
Comprehensive display allows easy monitoring and access of UPS status
Specifications:
Model
Champ TW 1K(L)
Champ TW 2K(L)
Champ TW 3K(L)
Capacity
1000 VA / 900W
2000 VA / 1800W
3000 VA / 2700W
Input Voltage Range
120-300 VAC ±5%
Input Frequency
40Hz ~ 70Hz
Power Factor
≥ 0.99 @ Nominal Voltage (100% load)
Output Voltage
± 1% (Batt. Mode)
Output Frequency Range
47.5 Hz ~ 52.5 Hz or 57Hz ~ 63 Hz (Synchronized Range)50 Hz ±0.25 Hz or 60 Hz ±0.3 Hz (Batt. Mode)
Current Crest Ratio
3:1
Harmonic Distortion
≤ 3 % THD (Linear Load)≤ 6 % THD (Non-linear Load)
Output Transfer Time (Typical)
Zero (AC to DC)4ms (Inverter to Bypass)
Output Waveform (Batt. Mode)
Pure Sinewave
Battery Type & Number
12V / 9Ah x 2
12V / 9Ah x 4
12V / 9Ah x 6
Backup Time (One PC load@120W)
N/A
Typical Recharge Time (up to 90% capacity)
4 hours
Indicators / AC Mode
Indicators / Battery Mode
Indicators / Battery level
Indicators / Load level
Indicators / Bypass mode
Indicators / Fault
Alarm / Battery Mode
Sounding every 4 seconds
Alarm / Low Battery
Sounding every second (Batt. Mode)
Alarm / Overload
Sounding twice per second
Alarm / Fault
Continuously sounding
Physical Dimension (mm)
282 x 145 x 220
397 x 145 x 220
421 x 190 x 318
Physical Net Weight (kg)Standard Model
9.8
17
27.6
Physical Net Weight (kg)Long-run Model
4.1
6.8
7.4
Operating Environment / Humidity
20-90 % RH @ 0- 40°C (non-condensing)
Operating Environment / Noise Level
Less than 50dB @ 1 Meter
Management / Optional USB / RS-232 Port
Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and MAC
Optional SNMP
Power management from SNMP manager and web browser
