TP-LINK Wireless Range Extender Dual Band BE3600 Wifi 7, RE235BE RE235BE

ARDWARE FEATURES





Interface
1× 2.5 Gbps Ethernet Port


Button
• WPS Button
• Reset Button


Input Power
100-240V~50/60Hz 0.3A


Max. Power Consumption
15W


Dimensions ( W x D x H )
3.8 × 1.8 × 6.2 in (97 × 46 × 158 mm)


Antenna
2 External Antennas








WIRELESS FEATURES





Wireless Standards
Wi-Fi 7
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz


Frequency
• 5 GHz
• 2.4 GHz


Signal Rate
• 2882 Mbps at 5 GHz
• 688 Mbps at 2.4 GHz

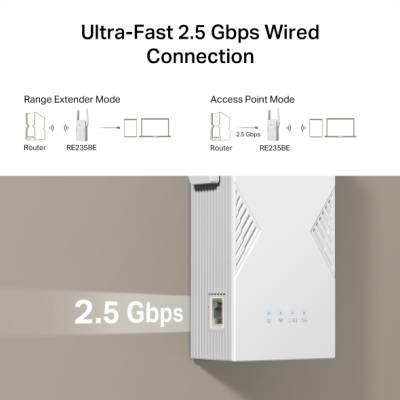

Working Modes
Range Extender/Access Point


Reception Sensitivity
5GHz:
11be EHT20 MCS0:-96dBm
11be EHT40 MCS0:-94dBm
11be EHT80 MCS0:-91dBm
11be EHT160 MCS0:-88dBm
11be EHT20 MCS13:-59dBm
11be EHT40 MCS13:-57dBm
11be EHT80 MCS13:-54dBm
11be EHT160 MCS13:-51dBm

2.4GHz:
11be EHT20 MCS0:-95dBm
11be EHT40 MCS0:-93dBm
11be EHT20 MCS13:-58dBm
11be EHT40 MCS13:-56dBm


Wireless Security
• WPA/WPA2-PSK encryptions
• WPA2/WPA3


Advanced Features
• Multi-Link Operation (MLO)
• 160 MHz Channel
• 4K-QAM
• Multi-RUs


Transmission Power
FCC:
• 2.4GHz < 30dBm
• 5GHz < 30dBm


Mesh Technology
EasyMesh-Compatible


Wireless Function
• LED Control
• Access Control
• Power Schedule
• Wi-Fi Coverage








OTHER





Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP
App management
Manage and configure device through app
• Port: 20001   Protocol: TCP
• Port: 20002   Protocol: UDP








OTHERS





Certification
FCC, RoHS


Package Content
• Wi-Fi 7 Range Extender RE235BE
• Quick Installation Guide


System Requirements
Internet Explorer, Firefox, Chrome, Safari, or other
JavaScript-enabled browser


Environment
• Operating Temperature: 0?~40? (32? ~104?)
• Storage Temperature: -40?~70? (-40? ~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing



RE235BE KSH szám: 8517620000
