TP-LINK Switch 5x2.5Gbps, Fémházas Asztali, TL-SG105-M2 TL-SG105-M2
- Gyártó: TP-LINK
- Microstore cikkszám:
- Garancia: 60 hónap
- Készlet információ:
-
58 114 Ft
FONTOS! Ha sürgős a rendelése, mindenképpen vegye fel a kapcsolatot velünk. Ne induljon el üzletünkbe a termékért mielőtt értesítenénk Önt.
Standards and Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Interface
5× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 12 VDC / 1 A)
LED Indicator
• System Power: 1
• Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port
Dimensions ( W x D x H )
8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption
12.11 W
Max Heat Dissipation
41.32 BTU/h
PERFORMANCE
Switching Capacity
25 Gbps
Packet Forwarding Rate
18.6 Mpps
MAC Address Table
16 K
Packet Buffer Memory
1.5 Mb
Jumbo Frame
10 KB
SOFTWARE FEATURES
Advanced Features
• 802.3X Flow Control
• 802.1p/DSCP QoS
Transfer Method
Store and Forward
OTHERS
Certification
CE, FCC ,RoHS
Package Contents

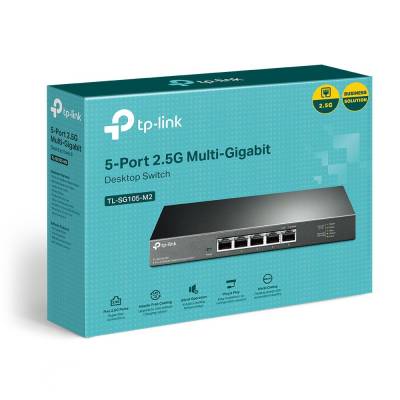

• 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2
• Power Adapter
• Installation Guide
• Rubber Feet
Environment
• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
For additional version information, please go to the support page.
