STARTECH USB3 4K LAPTOP DOCKING STATION USB3DOCKHDPC

The USB 3.0 4K Laptop Docking Station lets you create a high-resolution, 4K Ultra HD workstation in your office or at home. Now, you can discover leading-edge display technology, desktop convenience, and fast device charging by adding 4K DisplayPort, DP & HDMI dual video, USB quick-charge port, and several other vital connections to your laptop.

It's the perfect accessory for laptops and Ultrabooks, as well as your Microsoft Surface™ Pro 4, Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.

Leading-Edge Display Technology

Deliver brilliant text and image quality, and an exciting visual experience with one of the first docking stations to support 4Kx2K (3840x2160p - 30Hz) resolution. Now, you can take advantage of the latest Ultra High Definition (UHD) displays, or prepare your workspace for the future popularity of 4K touch screens, displays, and video sources, which offer 4x as many pixels as full high-definition (1920x1080p).

Maximum Supported Resolutions*







Video Output Configuration

Max DisplayPort Resolution

Max HDMI Resolution







DisplayPort(Single Display)



3840 x 2160p (4K)

N/A





HDMI(Single Display)

N/A

2560 x 1440p





DisplayPort and HDMI(Two Displays)

2048 x 1152p

2048 x 1152p







*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Native 4K videos, applications, and graphics look crystal-clear and sharp with vivid realism, documents are crisp, and colors appear rich and more accurate. Easily add 4K capabilities to your Windows® or Mac laptop, when connected to a single display via the dock DP video output and a DisplayPort-enabled 4K display. For extra display flexibility, pair the docking station with the DisplayPort to HDMI 4K Video Converter (SKU: DP2HD4KS - sold separately) to add support for a 4K HDMI-based display.



Desktop Convenience

Work faster, and more efficiently! With dual monitor support (4K output not supported in dual monitor configuration), you can design an immersive, multi-display desktop proven to streamline work and save time. Be up-and-running in seconds with no headaches, simply connect DP and HDMI-enabled displays to the integrated monitor outputs and you’re done.

A single USB 3.0 connection means docking your laptop (e.g. Lenovo® ThinkPad®, HP® / Dell® Ultrabook™, MacBook Pro®, MacBook Air®) is hassle-free, too. Devices remain constantly connected, letting you overcome laptop port limitations while also eliminating the aggravation of continually reconnecting peripherals. You can even tuck the dock neatly under your laptop, to create a full-sized workstation that’s organized and clutter-free. The dock is perfect for hoteling in shared workspaces, or for hot desks.



Device Charging

Fast-charge your tablet or smartphone, with or without a laptop connected to the dock! USB charging is fast, convenient, and easily accessible, through a side-facing, always-on USB fast-charge port that combines data throughput with support for USB Battery Charging Specification 1.2. You can create a dynamic shared workspace and get work done efficiently, while simultaneously adding charge and sync flexibility to a mobile device.

Now, you can enjoy true multitasking capability by rapid-charging your mobile device, fused with the performance and convenience of a full-sized 4K workstation. Plus, an integrated 4-port USB 3.0 hub-controller with support for UASP-enhanced performance offers faster data transfer rates, resulting in less waiting, and more productivity from your attached peripherals such as USB 3.0 external hard drives.











Hardware





4K Support

Yes





Bus Type

USB 3.0





Chipset ID

DisplayLink - DL-5900 (Display, LAN, Audio) VLI - VL812 (USB 3.0 w/ Charge)





Displays Supported

2





Fast-Charge Port(s)

Yes





Industry Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB Battery Charging Specification Rev. 1.2 USB 3.0 - Hub ports support USB 2.0/1.1 backward-compatibility





Performance





Auto MDIX

Yes





Compatible Networks

10/100/1000 Mbps





Full Duplex Support

Yes





Maximum Data Transfer Rate

5 Gbps (USB 3.0)2 Gbps (Ethernet; Full-Duplex)





Maximum Digital Resolutions

3840x2160 @ 30Hz / 2560x1600 / 2560x1440 (DisplayPort - Single Display) 2560x1440 (HDMI - Single Display) 2048x1152 & 2048x1152 (DisplayPort & HDMI - Two Displays)





Type and Rate

USB 3.0 - 5 Gbit/s





UASP Support

Yes





Connector(s)





Connector Type(s)

1 - DisplayPort (20 pin) Female







1 - HDMI (19 pin) Female







1 - USB 3.0 A (Fast-Charge; 9 pin; SuperSpeed) Female







3 - USB Type-A (9 pin) USB 3.0 Female







1 - RJ-45 Female







1 - 3.5 mm Mini-Jack (4 Position) Female







1 - USB Type-B (9 pin) USB 3.0 Female







1 - Security Lock Slot Female





Software





OS Compatibility

Windows® 10 (32-bit or 64-bit), 8 / 8.1 (32-bit or 64-bit), 7 (32-bit or 64-bit) Mac OS® 10.8 and later (tested up to 10.11)





Special Notes / Requirements





System and Cable Requirements

DisplayPort display must support 4K resolutions







If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)





Indicators





LED Indicators

1 - Link (Green)







1 - Activity (Yellow)





Power





Input Current

1.5 A





Input Voltage

100 ~ 240 AC





Output Current

6.5 A





Output Voltage

5 DC





Power Consumption

32.5 W Max





Power Source

AC Adapter Included





Environmental





Humidity

90% RH





Operating Temperature

0°C to 40°C (32°F to 104°F)





Storage Temperature

-10°C to 80°C (14°F to 176°F)





Physical Characteristics





Cable Length

2 ft [0.6 m]





Color

Black





Enclosure Type

Steel and Plastic





Product Height

0.9 in [24 mm]





Product Length

8.9 in [227 mm]





Product Weight

9.8 oz [277 g]





Product Width

3 in [76 mm]





Packaging Information





Shipping (Package) Weight

2.5 lb [1.1 kg]

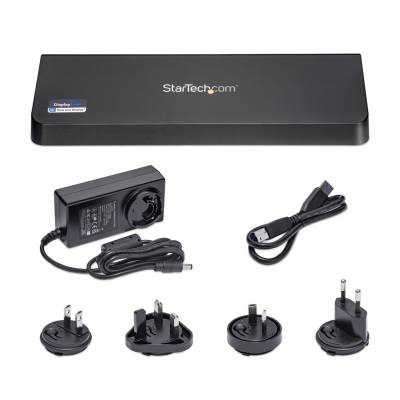

What's in the Box





Included in Package

1 - USB 3.0 Laptop Docking Station







1 - 2ft USB 3.0 Cable







1 - Universal Power Adapter







3 - Power Cords (NA/UK/EU)







1 - Driver CD







1 - Instruction Manual
