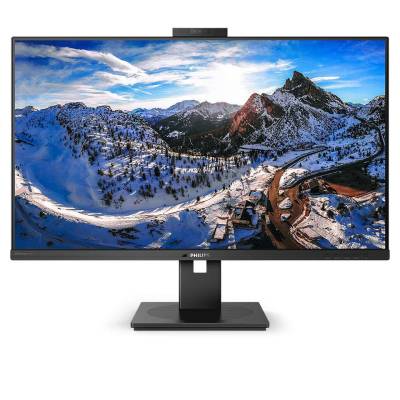

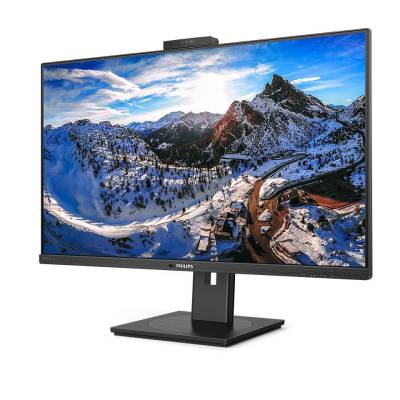

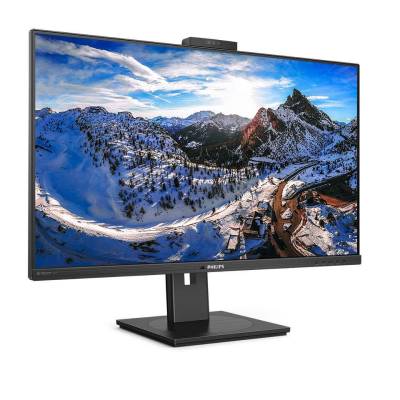

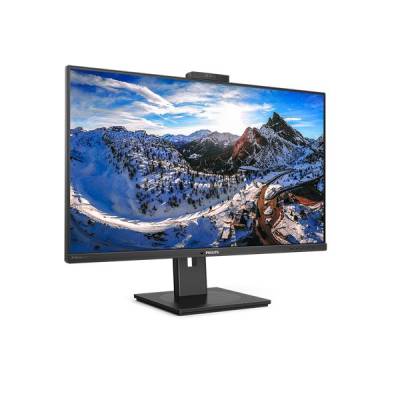

Philips 31,5" 326P1H IPS LED 326P1H/00

326P1H/00





P Line LCD monitor with USB-C Dock











The Philips USB-C docking display for a comprehensive solution. View QHD and re-charge a laptop up to 90 W, all at the same time with a single USB-C cable. Pop-up webcam with Windows Hello and daisy-chaining deliver performance and convenience

































Picture/Display















Delta E



< 2 (sRGB)







SmartUniformity



93 ~ 105%







Adaptive sync



Yes







Maximum resolution



2560 x 1440 @ 75 Hz*







EasyRead



Yes







Colour gamut (typical)



NTSC 106%*, sRGB 118%*, Adobe RGB 87%*







Brightness



350







Aspect ratio



16:9







Display Screen Coating



Anti-Glare, 3H, Haze 25%







Effective viewing area



698.112 (H) x 392.688 (V)







Panel Size



31.5 inch/80 cm







Backlight type



W-LED system







LCD panel type



IPS technology







SmartContrast



50,000,000:1







Contrast ratio (typical)



1000:1







Pixel pitch



0.2727 x 0.2727 mm







LowBlue Mode



Yes







Flicker-free



Yes







Pixel Density



93 PPI







Response time (typical)



4 ms (Grey to Grey)*







Picture enhancement



SmartImage







sRGB



Yes







Scanning Frequency



30–114 kHz (H)/48–75 Hz (V)







Display colours



Colour support 1.07 billion colours







Viewing angle



178º (H)/178º (V), @ C/R > 10

































Connectivity

















HBR3



for USB-C







Signal Output



DisplayPort out x 1







USB:



USB-C x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2)







HDCP



HDCP 2.2 (HDMI/DP/USB-C)







RJ45



Ethernet LAN up to 1 G*, Wake on LAN







Signal Input



DisplayPort 1.4 x 1, HDMI 1.4 x 2, USB-C 3.2 Gen 1 x 1 (upstream, power delivery up to 90 W)







Audio (In/Out)



Audio out







Sync Input



Separate Sync

































Convenience

















Built-in Speakers



5 W x 2







Built-in webcam



2.0 megapixel FHD camera with microphone and LED indicator (for Windows 10 Hello)







Control software



SmartControl







Plug and Play Compatibility



DDC/CI, Mac OS X, sRGB, Windows 10 / 8.1 / 8 / 7







Other convenience



Kensington lock, VESA mount (100 x 100 mm)







OSD Languages





Brazil Portuguese, Czech, Dutch, English, French, Finnish, German, Greek, Hungarian, Italian, Japanese, Korean, Portuguese, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian







User convenience



SmartImage, Input, User, Menu, Power On/Off

































Stand

















Height adjustment



180







Tilt



-5~25







Pivot



-/+ 90 degree







Swivel



-/+ 180

































Power

















On mode



25.3 W (typ.) (EnergyStar test method)







Standby mode



0.3 W







Off mode



Zero watts with Zero switch







Power LED indicator



Operation - White, Standby mode - White (flashing)







Power supply



Built-in, 100–240 VAC, 50–60 Hz







ECO mode



24 W (typ.)







Energy Label Class



G

































Dimensions

















Product with stand (max height)



714 x 649 x 280







Product without stand (mm)



714 x 422 x 62







Packaging in mm (W x H x D)



930 x 563 x 186

































Weight

















Product with stand (kg)



12.22







Product without stand (kg)



8.21







Product with packaging (kg)



15.53

































Operating conditions

















Temperature range (operation)



0°C to 40°C







Temperature range (storage)



-20°C to 60°C







Relative humidity



20%-80







Altitude



Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)







MTBF (demonstrated)



70,000 hrs (excluded backlight)

































Sustainability

















Environmental and energy



PowerSensor, LightSensor, EnergyStar 8.0, EPEAT*, TCO Certified Edge, RoHS







Recyclable packaging material



100







Specific Substances



Mercury free, PVC/BFR free housing







Post-consumer recycled plastic



85%

































Compliance and standards

















Regulatory Approvals



EPA, CB, TUV/GS, TUV Ergo, SEMKO, CU-EAC, EAEU RoHS, CCC, CEL, CECP, CE Mark, FCC Class B, ICES-003, TUV Eye Comfort certified

































Cabinet

















Front bezel



Black







Finish



Texture







Rear cover



Black







Foot



Black

































What's in the box?

















Cables



HDMI cable, DP cable, USB-C to C/A Y cable, Power cable







Monitor with stand



Yes







User Documentation



Yes

































USB

















USB-C



Reversible plug connector







Power delivery



USB PD version 3.0







USB-C max. power delivery



Up to 90 W (5 V/3 A, 7 V/3 A, 9 V/3 A, 10 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/4.5 A)







Super speed



Data and Video transfer







DP



Built-in Display Port Alt mode

































General

















Model name



326P1H







EAN



8712581768096
