Mikrotik hAP ax3 with RouterOS L6 License. international version (EU) C53UiG+5HPaxD2HPaxD
- Gyártó: MIKROTIK
- Microstore cikkszám:
- Gyári szám: C53UiG+5HPaxD2HPaxD
- Garancia: 24 hónap
- Készlet információ:
Mai rendelés esetén
🏪 Átvétel üzletünkben (Vecsés): aug. 4. (kedd)
🚚 Házhozszállítás: aug. 5. (szerda)
📦 FoxPost csomagautomata: aug. 6. (csütörtök)
-
47 029 Ft
-
Nettó: 37 031 Ft
💡 Jó tudni: üzletünkben azonnal a „Raktáron” jelzésű termékek vehetők át, a többit rendelésére szerezzük be: az „1–2” és „2–3 munkanap” jelzésűek hazai raktárból érkeznek, a „3–14 nap” jelzésűek pedig általában külföldi partnereinktől — ezért hosszabb a beszerzési idejük. Amint a termék átvehető, értesítjük. Személyes átvétel előtt kérjük, várja meg ezt az értesítést, hogy biztosan ne jöjjön hiába — ha pedig sürgős, keressen minket bizalommal, szívesen segítünk!
Garancia: 2 Év
Specifications
Details
Product code
C53UiG+5HPaxD2HPaxD
Architecture
ARM 64bit
CPU
IPQ-6010
CPU core count
4
CPU nominal frequency
auto (864 - 1800) MHz
RouterOS license
6
Operating System
RouterOS v7
Size of RAM
1 GB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate
574 Mbit/s
Wireless 2.4 GHz number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz
3.3
Wireless 2.4 GHz chip model
QCN-5022
Wireless 2.4 GHz generation
Wi-Fi 6
Wireless 5 GHz Max data rate
1200 Mbit/s
Wireless 5 GHz number of chains
2
Wireless 5 GHz standards
802.11a/n/ac/ax
Antenna gain dBi for 5 GHz
5.5
Wireless 5 GHz chip model
QCN-5052
Wireless 5 GHz generation
Wi-Fi 6
WiFi speed
AX1800
Ethernet
Details
10/100/1000 Ethernet ports
4
Number of 1G Ethernet ports with PoE-out
1
Number of 2.5G Ethernet ports
1
Peripherals
Details
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
1
Powering
Details
Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
12-28 V
Max power consumption
38 W
Max power consumption without attachments
15 W
Cooling type
Passive
PoE in
Passive PoE
PoE in input Voltage
18-28 V
PoE-out
Details
PoE-out ports
Ether 1
PoE out
Passive PoE
Max out per port output (input 18-30 V)
0.625 A
Max total out (A)
0.625 A
Total output current
0.625
Total output power
15
Certification & Approvals
Details
Certification
CE, FCC, IC, EAC, ROHS
Other
Details
Mode button
Yes
Wireless specifications
2.4 GHz
Transmit (dBm)
Receive Sensitivity
1MBit/s
27
-100
11MBit/s
27
-94
6MBit/s
29
-96
54MBit/s
27
-80
MCS0
29
-96
MCS7
26
-75
MCS9
24
-70
MCS11
22
-67
5 GHz
Transmit (dBm)
Receive Sensitivity
6MBit/s
28
-96
54MBit/s
26
-80
MCS0
28
-96
MCS7
25
-75
MCS9
23
-70
MCS11
20
-67

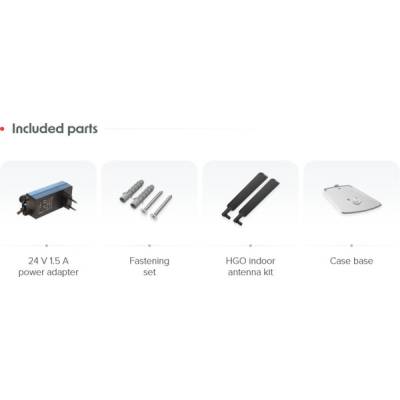

Included parts
24V 1.5A power adapter
Fastening set
HGO indoor antenna kit
hAP case base
