STARTECH - CARDS/HUBS/ADAPTER 4 PORT PCIE SERIAL CARD PEX4S232485
- Gyártó: STARTECH
- Microstore cikkszám:
- Gyári szám: PEX4S232485
- Garancia: 24 hónap
- Készlet információ:
Mai rendelés esetén
🏪 Átvétel üzletünkben (Vecsés): szept. 16. (szerda)
🚚 Házhozszállítás: szept. 17. (csütörtök)
📦 FoxPost csomagautomata: szept. 18. (péntek)
-
67 360 Ft
-
Nettó: 53 039 Ft
💡 Jó tudni: üzletünkben azonnal a „Raktáron” jelzésű termékek vehetők át, a többit rendelésére szerezzük be: az „1–2” és „2–3 munkanap” jelzésűek hazai raktárból érkeznek, a „3–14 nap” jelzésűek pedig általában külföldi partnereinktől — ezért hosszabb a beszerzési idejük. Amint a termék átvehető, értesítjük. Személyes átvétel előtt kérjük, várja meg ezt az értesítést, hogy biztosan ne jöjjön hiába — ha pedig sürgős, keressen minket bizalommal, szívesen segítünk!

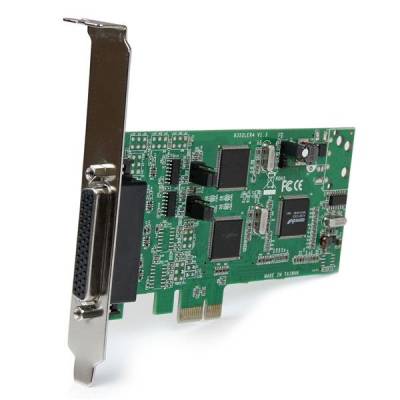

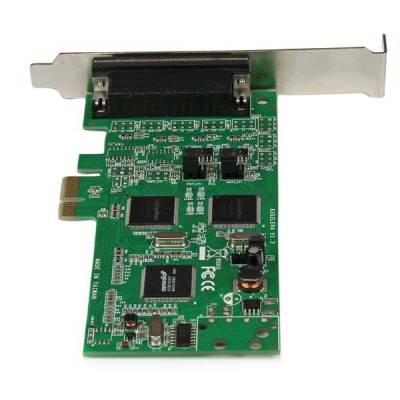

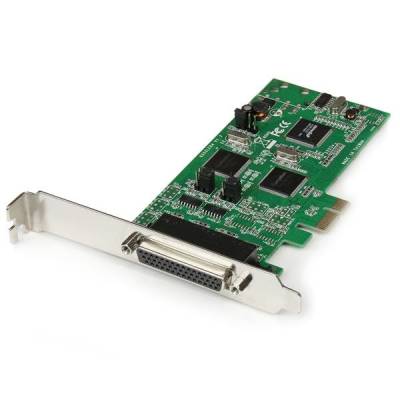

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.
A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Hardware
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
SystemBase - SB16C1052PCI
Interface
Serial
Port Style
Dongle (Included)
Ports
4
Performance
Data Bits
5, 6, 7, 8
FIFO
256 Bytes
Flow Control
None, Xon/Xoff, RTS/CTS
Max Baud Rate
460.8 Kbps
Parity
None, Odd, Even, Space, Mark
Serial Protocol
RS-232/422/485
Stop Bits
1, 1.5, 2
Supported Protocols
RS-232, RS-422, RS-485 2-wire / 4-wire
Connector(s)
Connector Type(s)
1 - PCI Express x1 Male
External Ports
4 - DB-9 (9 pin; D-Sub) Male
Software
OS Compatibility
Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000Windows Server® 2012, 2008 R2, 2003 Linux 2.6.x
Special Notes / Requirements
System and Cable Requirements
Available PCI Express slot
Environmental
Humidity
20~80% RH
Operating Temperature
0°C to 100°C (32°F to 212°F)
Storage Temperature
0°C to 150°C (32°F to 302°F)
Physical Characteristics
Product Height
2.7 in [69 mm]
Product Length
5.3 in [134 mm]
Product Weight
2.4 oz [67.4 g]
Product Width
0.6 in [14 mm]
Packaging Information
Shipping (Package) Weight
13.8 oz [390 g]
What's in the Box
Included in Package
1 - PCI Express Serial Combo Card

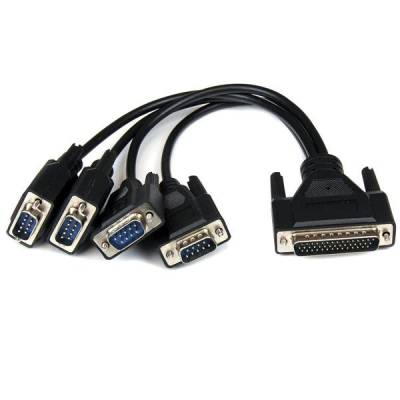

1 - Breakout Cable

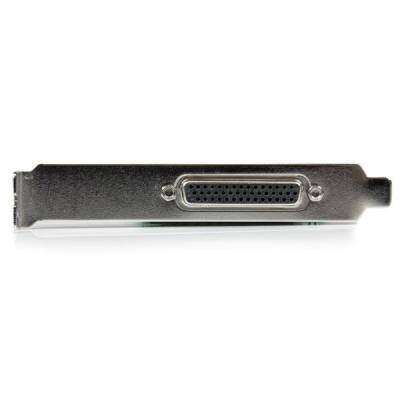

1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
