STARTECH DUAL MSATA SSD RAID TO SATA
- Gyártó: STARTECH
- Microstore cikkszám:
- Gyári szám: 25SAT22MSAT
- Garancia: 12 hónap
- Készlet információ:
Mai rendelés esetén
🏪 Átvétel üzletünkben (Vecsés): aug. 5. (szerda)
🚚 Házhozszállítás: aug. 6. (csütörtök)
📦 FoxPost csomagautomata: aug. 7. (péntek)
-
8 804 Ft
-
Nettó: 6 932 Ft
💡 Jó tudni: üzletünkben azonnal a „Raktáron” jelzésű termékek vehetők át, a többit rendelésére szerezzük be: az „1–2” és „2–3 munkanap” jelzésűek hazai raktárból érkeznek, a „3–14 nap” jelzésűek pedig általában külföldi partnereinktől — ezért hosszabb a beszerzési idejük. Amint a termék átvehető, értesítjük. Személyes átvétel előtt kérjük, várja meg ezt az értesítést, hogy biztosan ne jöjjön hiába — ha pedig sürgős, keressen minket bizalommal, szívesen segítünk!

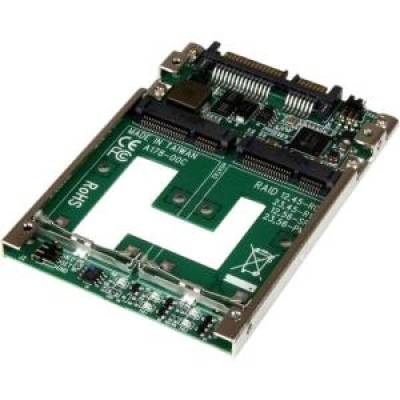

Vastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5" SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter.
Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.
You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.
The 25SAT22MSAT is backed by a StarTech.com 2-year warranty, and lifetime technical support.
The StarTech.com Advantage
Maximize system speed by adding SSD performance
Achieve greater drive capacity, or secure data redundancy with multiple RAID modes
Reduce overall power consumption, with high efficiency mSATA SSDs
Chipset ID
JMicron JMS562
Compatible Drive Types (Type and Rate)
mSATA (Mini SATA)
Drive Installation
Fixed
Interface
SATA
Number of Drives
2
Performance
Hot Swap Capability
No
Maximum Data Transfer Rate
6 Gbps
MTBF
5,101,299 Hours
Port Multiplier
Yes
RAID
Yes
Supported RAID Modes
BIG (Spanning or Concatenation)
JBOD - (Just a Bunch of Disks)
RAID 0 (Striped Disks)
RAID 1 (Mirrored Disks)
Type and Rate
SATA III (6 Gbps)
Connector(s)
Drive Connectors
2 - mSATA (52 pin; Mini SATA) Receptacle
Host Connectors
1 - SATA Data & Power Combo (7+15 pin) Receptacle
Software
OS Compatibility
OS independent; No software or drivers required
Indicators
LED Indicators
1 - Drive #1 Activity
1 - Drive #1 Failure
1 - Drive #2 Activity
1 - Drive #2 Failure
Environmental
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Physical Characteristics
Product Height
0.3 in [7 mm]
Product Length
3.8 in [97 mm]
Product Weight
1.4 oz [39 g]
Product Width
2.8 in [70 mm]
Packaging Information
Shipping (Package) Weight
3.8 oz [108 g]
What's in the Box
Included in Package
1 - Dual mSATA to 2.5in SATA Adapter
1 - Mounting screw kit
1 - Install Guide
