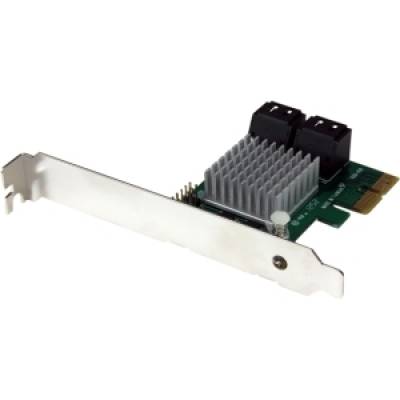

STARTECH 4 PORT PCIE SATA III CARD
- Gyártó: STARTECH
- Microstore cikkszám:
- Gyári szám: PEXSAT34RH
- Garancia: 24 hónap
- Készlet információ:
Mai rendelés esetén
🏪 Átvétel üzletünkben (Vecsés): aug. 5. (szerda)
🚚 Házhozszállítás: aug. 6. (csütörtök)
📦 FoxPost csomagautomata: aug. 7. (péntek)
-
40 338 Ft
-
Nettó: 31 762 Ft
💡 Jó tudni: üzletünkben azonnal a „Raktáron” jelzésű termékek vehetők át, a többit rendelésére szerezzük be: az „1–2” és „2–3 munkanap” jelzésűek hazai raktárból érkeznek, a „3–14 nap” jelzésűek pedig általában külföldi partnereinktől — ezért hosszabb a beszerzési idejük. Amint a termék átvehető, értesítjük. Személyes átvétel előtt kérjük, várja meg ezt az értesítést, hogy biztosan ne jöjjön hiába — ha pedig sürgős, keressen minket bizalommal, szívesen segítünk!
The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).
Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)
The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.
Throughput Benchmark
Drive configuration
Throughput
Drive size
1 x HDD
112.81 MB/s
2 TB
1 x SSD
490.28 MB/S
120 GB
1 x HDD + 1 x SSD HyperDuo (Safe Mode)
489.28 MB/s
2 TB
1 x HDD + 2 x SSD HyperDuo (Safe Mode)
715.13 MB/s
2 TB
Drives Used:SSD: OCZ Vertex 3 Series 2.5” 120 GB (VTX3-25SAT3-120G)HDD: Western Digital Caviar Green 3.5” 2 TB (WD20EARS)Software Used:IO Meter, 256KB Sequential Read, queue depth = 10
This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Leverage SSD performance and standard HDD capacity with HyperDuo technology
Maximize system capability with SATA III connection speeds
Fit any standard or low profile chassis with included brackets
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
Marvell - 88SE9230
Industry Standards
PCI Express 2.0
Serial ATA 3.0 specification
Interface
SATA
Port Style
Integrated on Card
Ports
4
Performance
LBA support
48-bit
Max Drive Capacity
Currently tested up to 4TB per drive
Number of Drives Supported Through Port Multiplier
1 to 4
Number of Ports That Support Port Multiplier
4 (can only use 1 PM at a time)
Port Multiplier
Yes
RAID
Yes
Supported RAID Modes
JBOD - (Just a Bunch of Disks)
RAID 1 (Mirrored Disks)
RAID 0 (Striped Disks)
RAID 10 (1+0; Striped set of Mirrored Subset)
Type and Rate
SATA III (6 Gbps)
Connector(s)
Connector Type(s)
1 - PCI Express x2 Male
Internal Ports
4 - SATA (7 pin; Data) Plug
Software
OS Compatibility
Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server® 2012, 2008 R2, 2003 Mac OS® 10.6 and later (tested up to 10.11)Linux
Special Notes / Requirements
Note
The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps per lane.
Only one port can use the Port Multiplier feature at a time. Supports up to 4 drives connected via Port Multiplier, 7 drives total.
Port Multiplier not supported in Mac OS.
System and Cable Requirements
Available PCI Express x2 slot (backward compatible with x4, x8, and x16 slots)
Environmental
Humidity
20% ~ 80% RH
Operating Temperature
5°C ~ 50°C (41°F ~ 122°F)
Storage Temperature
-25°C ~ 70°C (-13°F ~ 158°F)
Physical Characteristics
Product Height
0.8 in [20 mm]
Product Length
2.8 in [70 mm]
Product Weight
1.8 oz [50 g]
Product Width
4.7 in [120 mm]
Packaging Information
Package Quantity
1
Shipping (Package) Weight
5.1 oz [145 g]
What's in the Box
Included in Package
1 - PCIe SATA Controller Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual
