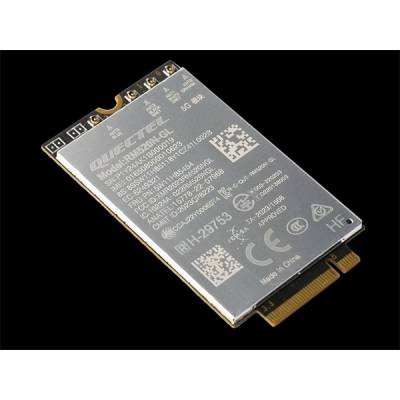

Lenovo ThinkPad Quectel RM520N-GL 5G M.2 WWAN Module 4XC1Q34838
- Gyártó: LENOVO
- Microstore cikkszám:
- Gyári szám: 4XC1Q34838
- Garancia: 24 hónap
- Készlet információ:
Mai rendelés esetén
🏪 Átvétel üzletünkben (Vecsés): aug. 6. (csütörtök)
🚚 Házhozszállítás: aug. 7. (péntek)
📦 FoxPost csomagautomata: aug. 10. (hétfő)
-
105 595 Ft
-
Nettó: 83 146 Ft
💡 Jó tudni: üzletünkben azonnal a „Raktáron” jelzésű termékek vehetők át, a többit rendelésére szerezzük be: az „1–2” és „2–3 munkanap” jelzésűek hazai raktárból érkeznek, a „3–14 nap” jelzésűek pedig általában külföldi partnereinktől — ezért hosszabb a beszerzési idejük. Amint a termék átvehető, értesítjük. Személyes átvétel előtt kérjük, várja meg ezt az értesítést, hogy biztosan ne jöjjön hiába — ha pedig sürgős, keressen minket bizalommal, szívesen segítünk!
Feature
Product Description
ThinkPad Quectel RM520N-GL 5G M.2 WWAN Module is a 5G NR/LTE-FDD/LTE-TDD/UMTS/HSPA+ wireless communication module with receive diversity. It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks. RM520N-GL is a standard M.2 Key-B WWAN module.
Top Features
A 5G NR/LTE-FDD/LTE-TDD/UMTS/HSPA+ wireless communication module with receive
diversity
Supports embedded operating systems such as Windows, Linux and Android
Provides GNSS function and optional eSIM function
PCI Express M.2 Interface
Compliant with ISO/ IEC 7816-3, and MIPI, etc
Dimension: 30mm*52mm*1.5mm
Weight: approx. 8.7 g
Tech Specs
Minimum Relative Humidity (%)
5%
Maximum Relative Humidity (%)
95%
JAN
4582763536522
EAN
0195892105855
UPC
195892105855
Warranty Type
Customer Replaceable Unit (CRU)
Warranty Period
1 Year
Other Physical Specifications
Interface: M.2 Key-B
Other Operating Environment
Extended operating temperature: –40? to +85? Storage temperature: –40? to +90?
Other Electrical Specifications
Antenna interface: x4 (Main, Rx-diversity/ GNSS, MIMO1, MIMO2)
Build in eSIM
Low power mode supported
Maximum Operating Temperature
+75?
Minimum Operating Temperature
-30?
Packed Weight
0.03kg
Packed Dimensions (L x D x H)
53*144*177
Package Type
Brown box
Hardware Requirements
PCIe M.2 Interface
Carriers
AT&T/ T-Mobile/ Verizon/ Vodafone/ EE/ Swisscom/ Deutsche Telekom/ Telefonica/ NTT Docomo/ KDDI/ Softbank
Agency Approvals
NCC/ ANATEL/ SRRC/ NAL/ CCC/ CE/ FCC/ IC/ RCM/ PTCRB/ GCF/ KC/ JATE/ TELEC/ NBTC/ IMDA/ ICASA
Shipment Group
WWAN module Warranty poster
Included Accessory
Product Weight
8.7g
Height
2.3mm
Depth
30mm
Length
52mm
Voltage
Supply voltage: 3.135–4.4 V Typical supply voltage: 3.3 V
Supported Band
5G 4G: FDD LTE, TDD LTE 3G: WCDMA GNSS
Supported OS
Windows 10 Windows 11
Brand
ThinkPad
Compatibility
Operating System
OS Independent
Compatible Machines
Description
ID
Footnote
ThinkPad P16 Series-P16v G2
21KX
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21KY
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad T14 Series-T14s AMD G6
21M1
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21M2
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad T14 Series-T14s G5
21LS
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21LT
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
