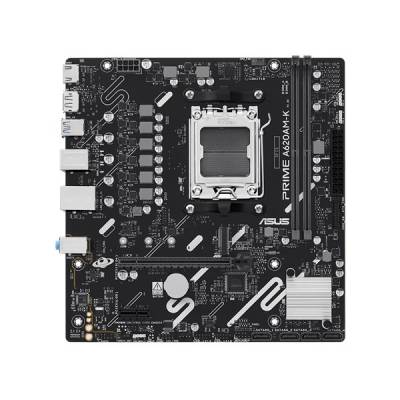

ASUS Alaplap AM5 PRIME A620AM-K AMD A620, mATX PRIME A620AM-K

Model




PRIME A620AM-K



News & Updates


Please visit our GLOBAL website to check and download the latest updates.


CPU


AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*Supports up to AMD 120W CPU* Refer to https://www.asus.com/support/download-center/ for CPU support list.


Chipset


AMD A620A Chipset


Memory


2 x DIMM slots, max. 128GB, DDR5Supports up to7200+MT/s(OC) with Ryzen™ 9000 & 7000 Series Processors,7600+MT/s(OC) with Ryzen™ 8000 Series Processors,Non-ECC Un-buffered DIMM*Dual channel memory architectureSupports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.


Graphics


1 x DisplayPort**1 x HDMI™ port***  * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.** Supports max. 8K@30Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1.


Expansion Slots


AMD Ryzen™ 9000 & 7000 Series Desktop Processors*1 x PCIe 4.0 x16 slot (supports x16 mode)AMD Ryzen™ 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**AMD A620A Chipset1 x PCIe 3.0 x1 slot* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).** Specifications vary by CPU types.- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.


Storage


Total supports 1 x M.2 slot and 4 x SATA 6Gb/s portsAMD Ryzen™ 9000 & 8000 & 7000 Series Desktop ProcessorsM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)AMD A620A Chipset4 x SATA 6Gb/s ports


RAID Support


AMD RAIDXpert2 Technology*Ryzen™ 9000 Series Processors: RAID 0/1/5/10Ryzen™ 8000 Series Processors: RAID 0/1Ryzen™ 7000 Series Processors: RAID 0/1/10* Specifications vary by CPU types.


Ethernet


1 x Realtek 1Gb EthernetASUS LANGuard


USB


Rear USB (Total 6 ports)4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 6 ports)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports


Audio


Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.


Back Panel I/O Ports


4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 keyboard/mouse combo port


Internal I/O Connectors


Fan and Cooling Related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectorStorage Related1 x M.2 slot (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable RGB Gen 2 headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin Front Panel System header


Special Features


ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage protection- SafeSlot Core- Stainless-steel back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Aluminum heatsink designAura Sync- Addressable RGB Gen 2 headers


Software Features


ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+ASUS DriverHub- ASUS CPU-ZAdobe Creative Cloud (Free Trial)**Norton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Cache BoostASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.


BIOS


256 Mb Flash ROM, UEFI AMI BIOS


Manageability


WOL by PME, PXE


Accessories


Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O shield1 x Screw package for M.2 SSDDocumentation1 x Quick start guide


Operating System


Windows 11, Windows 10 64-bit


Form Factor


micro-ATX Form Factor8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
