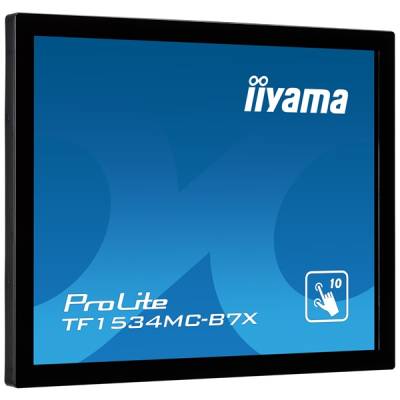

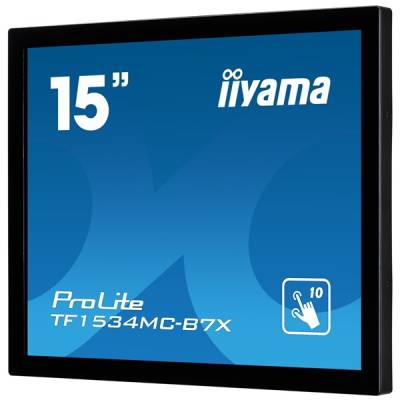

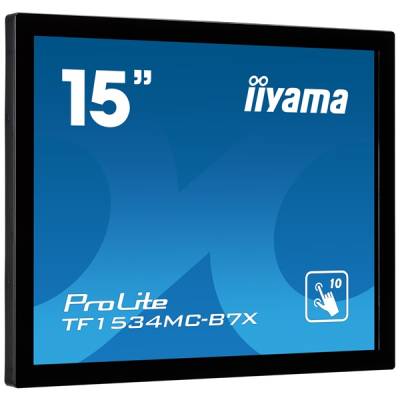

iiyama touch monitor, 15", 1024x768, 4:3, 330cd, 8ms, 700:1,VGA/HDMI/DP, Open frame, TF1534MC TF1534MC-B7X
- Gyártó: IIYAMA
- Microstore cikkszám:
- Gyári szám: TF1534MC-B7X
- Garancia: 24 hónap
- Készlet információ:
Mai rendelés esetén
🏪 Átvétel üzletünkben (Vecsés): júl. 15. (szerda)
🚚 Házhozszállítás: júl. 16. (csütörtök)
📦 FoxPost csomagautomata: júl. 17. (péntek)
-
189 897 Ft
-
Nettó: 149 525 Ft
💡 Jó tudni: üzletünkben azonnal a „Raktáron” jelzésű termékek vehetők át, a többit rendelésére szerezzük be: az „1–2” és „2–3 munkanap” jelzésűek hazai raktárból érkeznek, a „3–14 nap” jelzésűek pedig általában külföldi partnereinktől — ezért hosszabb a beszerzési idejük. Amint a termék átvehető, értesítjük. Személyes átvétel előtt kérjük, várja meg ezt az értesítést, hogy biztosan ne jöjjön hiába — ha pedig sürgős, keressen minket bizalommal, szívesen segítünk!
DISPLAY CHARACTERISTICS
Design
Open Frame
Diagonal
15", 38cm
Panel
TN LED
Native resolution
1024 x 768 (0.8 megapixel)
Aspect ratio
4:3
Panel brightness
370 cd/m²
Brightness
330 cd/m² with touch
Light transmittance
90%
Static contrast
700:1
Response time (BTB)
8ms
Viewing zone
horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support
16.2mln (6bit + Hi-FRC)
Horizontal Sync
31.4 - 60kHz
Viewable area W x H
304 x 228mm
Pixel pitch
0.297mm
Bezel colour and finish
black, matte
TOUCH
Touch technology
projective capacitive
Touch points
10 (HID, only with supported OS)
Touch method
stylus, finger, glove (latex)
Touch interface
USB
Supported operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass
6mm
Palm rejection
yes
INTERFACES / CONNECTORS / CONTROLS
Analog signal input
VGA x1
Digital signal input
HDMI x1
DisplayPort x1
HDCP
yes
FEATURES
Extra
anti-fingerprint coating, touch through-glass
Glass hardness
7H
Water and dust protection
IP65 (front)
OSD key lock
yes
GENERAL
OSD languages
EN, DE, FR, ES, IT, CN, JP
Control buttons
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls
picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Plug&Play
DDC2B
MECHANICAL
Orientation
landscape, portrait, face-up
VESA mounting
100 x 100mm
ACCESSORIES INCLUDED
Cables
power, USB, HDMI, DP
Guides
quick start guide, safety guide
Other
AC adapter
Cable cover
yes
POWER MANAGEMENT
Power supply unit
external
Power supply
DC DC 12 V
Power usage
9W typical, 1.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369)
E
REACH SVHC
above 0.1%: Lead
DIMENSIONS / WEIGHT
Product dimensions W x H x D
337.5 x 265.5 x 44.5mm
Box dimensions W x H x D
435 x 335 x 165mm
Pallet volume
78pcs
Pallet dimensions W x H x D
910 x 1140 x 1987mm
Weight (without box)
2.7kg
Weight (with box)
4kg
EAN code
4948570118380
COMPATIBLE ACCESSORIES

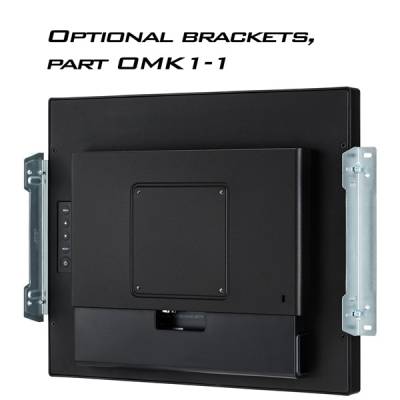

Mounts/stands/brackets
OMK1-1
RELATED INFORMATION
Product series
ProLite TF1634MC-B7X, ProLite TF1734MC-B7X, ProLite TF2234MC-B7X, ProLite TF1934MC-B7X
Related products
RC TOUCHV01, OMK1-1
