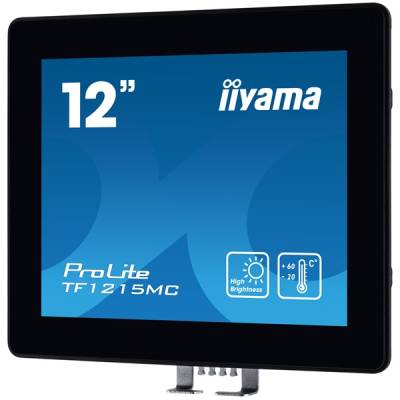

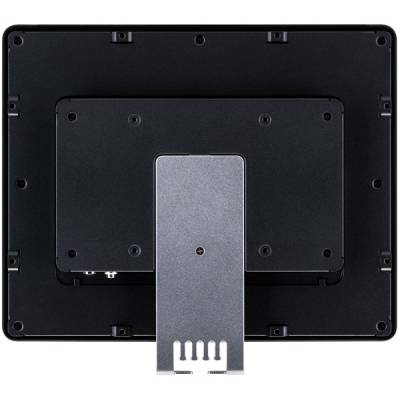

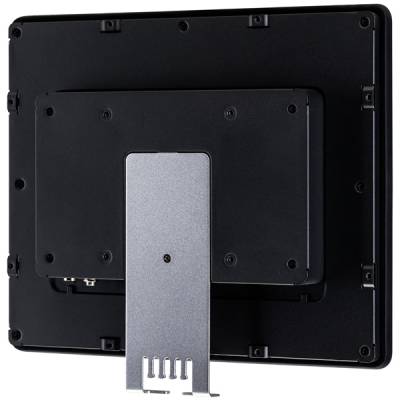

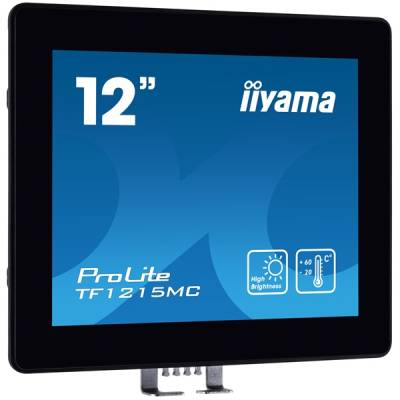

iiyama touch monitor, 12", 1024x768, 4:3, 450cd, 28ms, 1000:1,VGA/HDMI/DP, Open frame, TF1215MC TF1215MC-B1
- Gyártó: IIYAMA
- Microstore cikkszám:
- Gyári szám: TF1215MC-B1
- Garancia: 24 hónap
- Készlet információ:
Mai rendelés esetén
🏪 Átvétel üzletünkben (Vecsés): júl. 15. (szerda)
🚚 Házhozszállítás: júl. 16. (csütörtök)
📦 FoxPost csomagautomata: júl. 17. (péntek)
-
194 150 Ft
-
Nettó: 152 874 Ft
💡 Jó tudni: üzletünkben azonnal a „Raktáron” jelzésű termékek vehetők át, a többit rendelésére szerezzük be: az „1–2” és „2–3 munkanap” jelzésűek hazai raktárból érkeznek, a „3–14 nap” jelzésűek pedig általában külföldi partnereinktől — ezért hosszabb a beszerzési idejük. Amint a termék átvehető, értesítjük. Személyes átvétel előtt kérjük, várja meg ezt az értesítést, hogy biztosan ne jöjjön hiába — ha pedig sürgős, keressen minket bizalommal, szívesen segítünk!
DISPLAY CHARACTERISTICS
Design
Open Frame
Diagonal
12.1", 31cm
Panel
IPS Technology
Native resolution
1024 x 768 (0.8 megapixel)
Aspect ratio
4:3
Panel brightness
540 cd/m²
Brightness
450 cd/m² with touch
Light transmittance
85%
Static contrast
1000:1
Response time (BTB)
25ms
Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support
16.2mln (6bit + Hi-FRC)
Horizontal Sync
31.4 - 60kHz
Viewable area W x H
245.8 x 184.3mm, 9.7 x 7.2"
Pixel pitch
0.24mm
Bezel colour and finish
black
TOUCH
Touch technology
projective capacitive
Touch points
10 (HID, only with supported OS)
Touch method
finger, glove (latex), capacitive stylus
Touch interface
USB
Supported operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass
6mm
Palm rejection
yes
INTERFACES / CONNECTORS / CONTROLS
Analog signal input
VGA x1
Digital signal input
HDMI x1
DisplayPort x1
Audio output
Mini jack x1
HDCP
yes
FEATURES
Extra
anti-fingerprint coating, touch through-glass
Glass thickness
3.15mm
Glass hardness
7H
60950 Ball drop test
yes
Water and dust protection
IP65 (front)
OSD key lock
yes
GENERAL
OSD languages
EN, DE, FR, ES, IT, CN, JP
Control buttons
Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
User controls
picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play
DDC2B
MECHANICAL
Orientation
landscape, portrait, face-up
VESA mounting
100 x 100mm
Operation temperature range (-°/+°)
-20°C - 60°C
Storage temperature range
- 20°C - 60°C
ACCESSORIES INCLUDED
Cables
power, USB, HDMI, DP
Guides
quick start guide, safety guide
Other
AC adapter, external control pad
Remote control
external control pad
POWER MANAGEMENT
Power supply unit
external
Power supply
DC 12 V
Power usage
10W typical, 0.55W stand by, 0.5W off mode
SUSTAINABILITY
Regulations
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369)
F
DIMENSIONS / WEIGHT
Product dimensions W x H x D
308.5 x 248 x 41.5mm
Box dimensions W x H x D
435 x 355 x 165mm
Weight (without box)
2.1kg
Weight (with box)
3.9kg
EAN code
4948570118007
COMPATIBLE ACCESSORIES
Mounts/stands/brackets
OMK3-1
