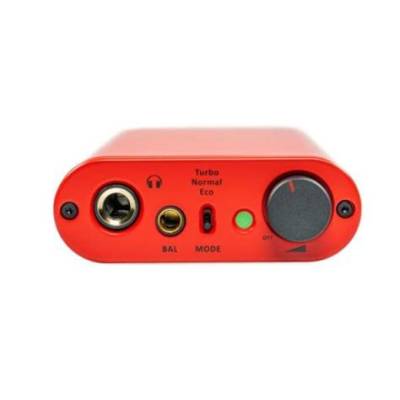

ifi iDSD Diablo USB 3.0 A; S-PDIF DAC IDSD DIABLO

Digital Inputs

USB 3.0 type 'A' (USB2.0 compatible)


S-PDIF (3.5mm coaxial/optical)


Formats supported

DSD512/256/128/64


Octa/Quad/Double/Single-Speed DSD


DXD (768/705.6/384/352.8kHz)


Double/Single-Speed DXD


PCM (768/705.6/384/352.8/192/176.4/


96/88.2/48/44.1 kHz)


MQA (Decoder)


Frequency Response

10Hz-80kHz(-3dB)


SNR
Balanced
-120dB


S-E
-114dB


Dynamic range
Balanced
120dB


S-E
114dB


THD + N
Balanced
0.002%


S-E
0.001%


Headphone Max Output
Balanced
>19.2V/611 mW (@ 600 Ohnn)



>12.6V/4,980 mW (@ 32 Ohm)


S-E
>9.6V/153 mW (@ 600 Ohm)



>8.8V/2,417 mW (@ 32 Ohm)


Fixed Audio Output

Balanced 4.4mm


Power consumption
Turbo
12W


Normal
5W


Eco
2W


Battery

Lithium-polymer 4800mAh


Power System

Charging via USB-C (iFi iPower included)


BC V1.2 compliant up to 1900mA charging current


Dimensions

166 x 72 x 25 mm


6.5" x 2.8"x 1.0"


Weight

330g (0.73 lbs)


Warranty period

12 months




*Specifications are subject to change without notice.
