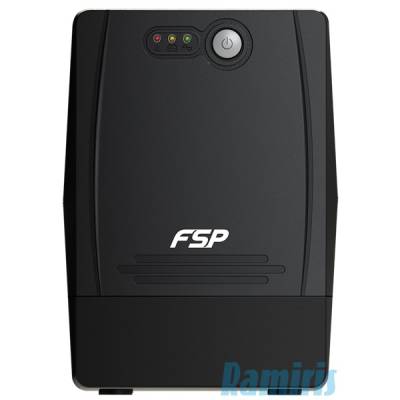

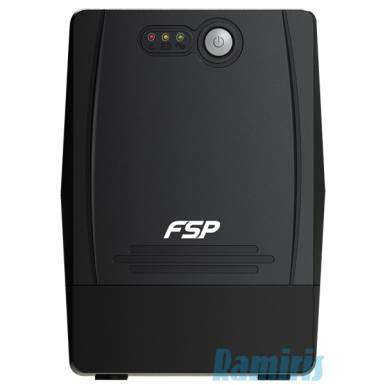

FSP FP 1500 VA szünetmentes tápegység

Surge Protection 312J
 ,
Model

EP 1500


Capacity
1500 VA / 900W


Input Voltage
110 / 120 VAC or 220 / 230 / 240 VAC


Input Voltage Range
81-145 VAC / 162-290 VAC


Input Frequence
60/50 Hz (auto sensing)


Output Voltage
±,10%


Output / Frequence Range
60 Hz or 50 Hz ±,1 Hz


Output / Transfer Time (Typical)
Typical 2-6 ms, 10ms max.


Output / Waveform (Batt. Mode)
Simulated Sine Wave


Battery / Battery Type &, Number
12 V / 9 AH x 2


Battery / Backup Time (One PC load@120W) 10% Load
25 min.


Battery / Typical Recharge Time
4-6 hours recover to 90% capacity


Indicators / Ac Mode
The right green LED lighting &, the 2nd to 5th green LEDs gradually lighting indicating load level


Indicators / Battery Mode
The right green LED flashing &, the 2nd to 5th green gradually lighting indicating battery capacity


Indicators / Fault
Red lighting


Protection / Full Protection
Overload, discharge and overcharge protection


Alarm / Battery Mode
Sounding every 10 seconds


Alarm / Low Battery
Sounding every second


Alarm / Overload
Sounding twice per second


Alarm / Battery Replacement Alarm
Sounding every 2 seconds


Alarm / Fault
Continuously sounding


Outlet sockets
Schuko x 3 + IEC x 3 / also provide India, French, Schuko, NEMA, and IEC for selections


Physical Dimension, D x W x H (mm)
397 x 146 x 205


Physical Net Weight (kg)
11.1


Operating Environment / Humidity
0-90% RH @ 0-40°,C (non-condensing)


Operating Environment / Noise Level
Less than 40dB


Management / Optional USB / RS-232 Port
Supports Windows®, 98/2000/2003/XP/Vista/2008, Windows®, 7, Linux, and MAC


FP1500 KSH szám: 85072020
