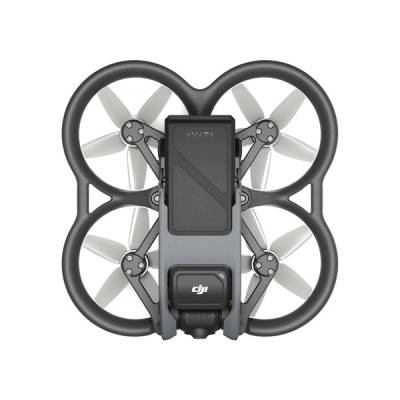

DJI Avata CP.FP.00000062.01

DJI Avata (No RC)








In the Box







DJI Avata × 1

DJI Avata Intelligent Flight Battery × 1

DJI Avata Propellers (Pair) × 3

DJI Avata Power Adapter × 1

DJI Avata Gimbal Protector × 1

Type-C to Type-C PD Cable × 1

Screwdriver × 1

Screws (M2×7) × 4
.










Specs





Camera







Sensor:

1/1.7-inch CMOS
Effective Pixels: 48 MP

Lens:

FOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞

ISO Range:
100-6400 (Auto)
100-25600 (Manual)

Shutter Speed:

Video: 1/8000-1/50 s
Photo: 1/8000-1/50 s

Still Photography Mode: Single Shot

Max Image Size: 4000×3000

Photo Format: JPEG

Video Resolution:

With DJI Goggles 2:
4K@30/50/60fps
2.7K@30/50/60/100/120fps
1080p@30/50/60/100/120fps

With DJI FPV Goggles V2:
4K@30/50/60fps
2.7K@30/50/60/100/120fps
1080p@30/50/60/100/120fps

Video Format: MP4

Max Video Bitrate: 150 Mbps

Color Mode:

Standard
D-Cinelike

EIS:

Supports RockSteady and HorizonSteady
Can be disabled

Distortion Correction: Supports Normal Mode, Wide Mode, and Ultra Wide Mode

Supported File System:

exFAT (recommended)
FAT32
.










Gimbal







Mechanical Range: Tilt: -95° to 75°

Controllable Range: Tilt: -80° to +65°

Stabilization: Single-Axis (tilt)

Max Control Speed: 60°/s

Angular Vibration Range: ±0.01°

Electronic Roll Axis: Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.
.










Aircraft







Model: QF2W4K

Takeoff Weight: Approx. 410 g

Dimensions (L×W×H): 180×180×80 mm

Diagonal Distance: 120 mm

Max Ascent Speed: 6 m/s (Normal Mode, Sport Mode)

Max Descent Speed: 6 m/s (Normal Mode, Sport Mode)

Max Speed [1]:

8 m/s (Normal Mode)
14 m/s (Sport Mode)
27 m/s (Manual Mode)

Maximum Takeoff Altitude: 5000 m

Max Hover Time: Approx. 18 mins [2]

Max Flight Distance: 11.6 km

Max Wind Speed Resistance: 10.7 m/s (Level 5)

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Transmission Power (EIRP):

FCC: < 33 dBm
CE: < 14 dBm
SRRC: < 30 dBm

Antennas: Dual Antennas, 2T2R

GNSS: GPS + Galileo + BeiDou

Hovering Accuracy Range:

Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GNSS Positioning)

Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GNSS Positioning)

Supported SD Cards: microSD (up to 256 GB)

Recommended microSD Cards:

SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC

Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC

Samsung PRO Plus U3 V30 A2 256GB microSDXC

Internal Storage: 20 GB
.










Sensing System







Downward (Binocular Vision and ToF) [3]:

ToF Effective Measurement Height: 10 m
Precise Hovering Range: 0.5-10 m
Vision Sensor Hovering Range: 0.5-20 m

Operating Environment:

Diffuse reflective surfaces with a clear pattern > 20% (such as walls, trees, or people)
Adequate lighting (lux > 15, normal indoor lighting conditions)
.










Intelligent Flight Battery







Battery Capacity: 2420 mAh

Voltage: 14.76 V

Charging Voltage Limit: 17 V

Type: Li-ion

Chemical System: LiNiMnCoO2

Energy: 35.71 Wh@0.5C

Discharge Rate: Typical: 7C

Weight: Approx. 162 g

Charging Temperature Range: 5° to 40° C (41° to 104° F)
.










Video Transmission







Communication Frequency:

2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX) [4]

Communication Bandwidth: Max 40 MHz

Live View Quality and Latency [5]:

With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.

With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.

Max Video Transmission Bitrate [6]: 50 Mbps

Max Video Transmission Range [7]: 10 km (FCC), 2 km (CE), 6 km (SRRC)

Audio Transmission: N/A
.










DJI Goggles 2







Model: RCDS18

Weight: Approx. 290 g (headband included)

Dimensions (L×W×H):

With antennas folded: 167.40×103.90×81.31 mm
With antennas unfolded: 196.69×103.90×104.61 mm

Screen Size (single screen): 0.49-inch

Resolution (single screen): 1920×1080

Refresh Rate: Up to 100 Hz

Interpupillary Distance Range: 56-72 mm

Diopter Adjustment Range: -8.0 D to +2.0 D

FOV (single screen): 51°

Communication Frequency:

2.400-2.4835 GHz
5.725-5.850 GHz [4]

Transmission Power (EIRP):

2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)

Wi-Fi Protocol: Wi-Fi 802.11b/a/g/n/ac

Wi-Fi Communication Frequency:

2.400-2.4835 GHz
5.150-5.250 GHz (indoor use only) [8]
5.725-5.850 GHz [4]

Wi-Fi Transmission Power (EIRP):

2.4 GHz: < 20 dBm (FCC/CE/SRRC/KC)
5.1 GHz [8]: < 20 dBm (FCC/CE/KC)
5.8 GHz [4]: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)

Bluetooth Protocol: Bluetooth 5.2

Bluetooth Communication Frequency: 2.400-2.4835 GHz

Bluetooth Transmission Power (EIRP): < 8 dBm

Max Video Transmission Bitrate [6]: 50 Mbps

Video Recording Format: MOV

Supported Video and Audio Playback Formats: MP4 and MOV (video coding formats: H.264 and H.265; audio format: ACC, PCM)

Wi-Fi Wireless Streaming: Supports DLNA Protocol

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Power Input: DJI Goggles 2 Battery

Supported SD Cards: microSD (up to 256 GB)
.










DJI Goggles 2 Battery







Capacity: 1800 mAh

Voltage: 7-9 V (1.5 A)

Type: Li-ion

Chemical System: LiNiMnCoO2

Energy: 18 Wh

Charging Temperature Range: 0° to 45° C (32° to 113° F)

Max Charging Power: 12.6 W (5 V/2 A, 9 V/1.4 A)

Weight: Approx. 122 g

Dimensions (L×W×H): 73.04×40.96×26 mm

Operating Time: Approx. 2 hours
.










DJI FPV Goggles V2







Model: FGDB28

Weight: Approx. 420 g (headband and antennas included)

Supported Video and Audio Playback Formats: MP4, MOV, MKV (video coding format: H.264; audio formats: AAC-LC, AAC-HE, AC-3, MP3)

Operating Temperature Range: 0° to 40° C (32° to 104° F)

Video Recording Format: MOV (video coding format: H.264)

FOV:

30° to 54°, adjustable
Image Size: 50% to 100%

Communication Frequency:

2.400-2.4835 GHz
5.725-5.850 GHz [4]

Max Video Transmission Bitrate [6]: 50 Mbps

Dimensions (L×W×H):

Without antennas: 184×122×110 mm
With antennas: 202×126×110 mm

Transmission Power (EIRP):

2.400-2.4835 GHz
FCC: ≤ 28.5 dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm

5.725-5.850 GHz [4]
FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 19 dBm

Screen Size (single screen): 2-inch

Power Input: Dedicated DJI Goggles batteries

Supported SD Cards: microSD (up to 256 GB)

Communication Bandwidth: Max 40 MHz

Interpupillary Distance Range: 58-70 mm

Refresh Rate: 144 Hz

Screen Resolution: 1440×810
.










DJI FPV Goggles V2 Battery







Weight: Approx. 119 g

Dimensions (L×W×H): 73.04×40.96×26 mm

Capacity: 1800 mAh

Voltage: Max 9 V

Chemical System: LiNiMnCoO2

Type: Li-Po 2S

Energy: 18 Wh

Charging Temperature Range: 0° to 45° C (32° to 113° F)

Max Charging Power: 10 W

Operating Time: Approx. 110 mins
.










DJI Motion Controller







Model: FC7BMC

Weight: Approx. 167 g

Communication Frequency:

2.400-2.4835 GHz
5.725-5.850 GHz [4]

Transmission Power (EIRP):

2.4 GHz: ≤ 28.5 dBm (FCC), ≤ 20 dBm (CE/SRRC)
5.8 GHz [4]: ≤ 31.5 dBm (FCC), ≤ 19 dBm (SRRC), ≤ 14 dBm (CE)

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Operating Time: Approx. 5 hours
.










DJI FPV Remote Controller 2







Model: FC7BGC

Weight: Approx. 346 g

Communication Frequency:

2.400-2.4835 GHz
5.725-5.850 GHz [4]

Transmission Power (EIRP):

2.4 GHz: ≤ 28.5 dBm (FCC), ≤ 20 dBm (CE/SRRC)
5.8 GHz [4]: ≤ 31.5 dBm (FCC), ≤ 19 dBm (SRRC), ≤ 14 dBm (CE)

Dimensions (L×W×H): 190×140×51 mm

Operating Time: Approx. 9 hours

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Charging Time: 2.5 hours
.










Other





Footnotes





1. The max flight speed is subject to dynamic local restrictions. Please abide by local laws and regulations when flying.
2. Tested when hovering in an environment without wind or interference.
3. DJI Avata only supports downward obstacle sensing when used with DJI FPV Remote Controller 2, or DJI Motion Controller in N Mode and S Mode.
4. The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
5. Tested in an outdoor open environment without interference. The video transmission latency data varies with different models.
6. Tested in an outdoor open environment without interference. The video transmission bitrate varies with operating environments.
7. FCC compliant and tested in an outdoor open environment without interference. Data is tested under different standards in an outdoor open environment without interference. Only to serve as a reference for the max one-way communication distance without considering RTH. Please pay attention to the RTH prompts during actual flight. Max one-way communication distance of DJI Avata in countries/regions of different standards:
FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions.
SRRC: Mainland China.
CE: UK, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions.
8. The 5.1 GHz frequency band is currently banned in China and Thailand. For details, please refer to local laws and regulations.
