D-Link DUB-2335 USB-C Mini Docking Station with 3xUSB 3.0, USB-C/PD 3.0, HDMI and Gigabit Ethernet DUB-2335

Garancia: 2 Év









Hardware









Chipset





• RTL8153

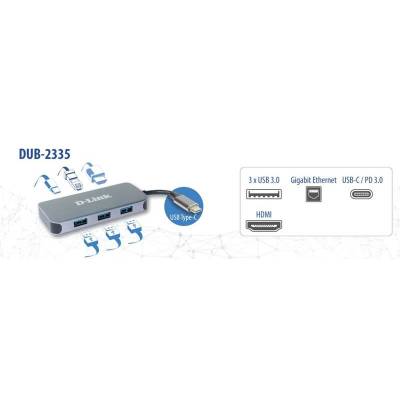

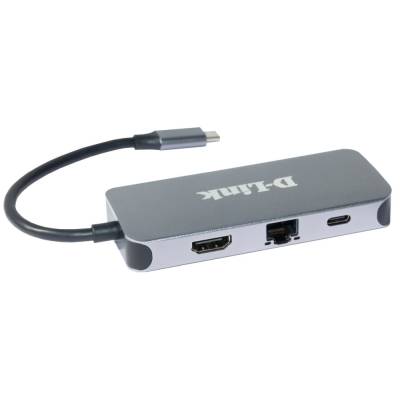

Interfaces





• One USB Type-C connector



• Three USB 3.0 Type-A ports



• One USB Type-C/PD 3.0 port



• One HDMI port



• One RJ-45 Ethernet port (10/100/1000 Mbps)









LEDs





• Link (per Ethernet port)



   - Solid white - Ethernet connection



• Speed (per Ethernet port)



   - Flashing orange - data transmission









General









Standards





• USB 3.0



• USB 2.0



• USB 1.1



• IEEE 802.3 10Base-T



• IEEE 802.3u 100Base-TX



• IEEE 802.3ab 1000Base-T









Data rate





• Up to 5 Gbps (USB 3.0)



• Up to 1000 Mbps (Ethernet)









Resolution





• 4K @ 30 Hz









System requirements





• Available USB Type-C port



• Windows 7/8/8.1/10 and above, macOS (OS X 10.8 and above)









Physical Parameters









Dimensions (L x W x H)





• 103 x 45.5 x 15 mm









Weight





• 0.08 kg









Environmental Conditions









Power input





• From computer (USB bus powered)









Supplied charging voltage/current





• 20 V / 3 A (PD 3.0)









Temperature





• Operating: 0 to 45 °C



• Storage: -10 to 70  °C









Humidity





• Operating: up to 85% non-condensing



• Storage: up to 85% non-condensing









Package Contents









• DUB-2335 docking station



• Quick Installation Guide



• Warranty documents
