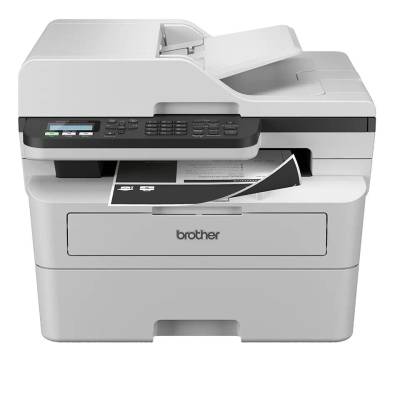

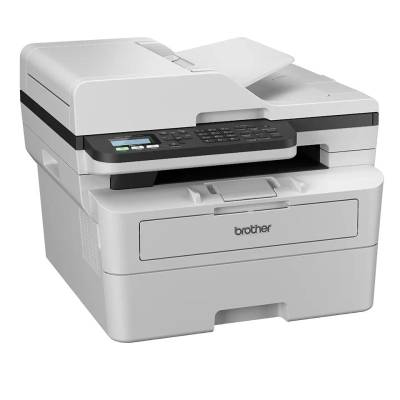

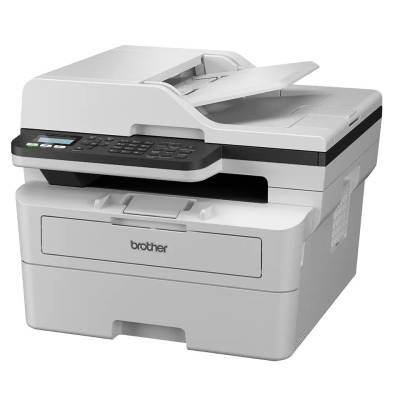

Brother MFC-B7800DN Wireless Lézernyomtató/Másoló/Scanner/Fax MFCB7800DNYJ1

Garancia: 3 Év

General Specifications









Printer Type







Laser





Print Method







Electrophotographic Laser Printer





Memory Capacity



Standard







256 MB







Liquid Crystal Display (LCD)







16 characters x 2 lines





Power Source







220 V to 240 V AC 50/60 Hz





Power Consumption

(Average)



Peak







Approximately 920 W





Printing *1







Approximately 470 W at 25°C





Printing

(Quiet Mode) *1







Approximately 270 W at 25°C





Copying *1







Approximately 490 W at 25°C





Copying

(Quiet Mode) *1







Approximately 280 W at 25°C





Ready *1







Approximately 43 W at 25°C





Sleep *1







Approximately 4.1 W





Deep Sleep *1







(DCP-B7600D)

Approximately 0.5 W



(DCP-B7620DW/MFC-B7800DN/MFC-B7810DW)

Approximately 0.6 W





Power Off *1 *2 *3







Approximately 0.08 W





Dimensions

(Typical outline view)

(DCP-B7600D/DCP-B7620DW)





(MFC-B7800DN/MFC-B7810DW)







Unit: mm





(DCP-B7600D/DCP-B7620DW)

* : 410

** : 272

*** : 399



(MFC-B7800DN/MFC-B7810DW)

* : 410

** : 319

*** : 399







Weight (with supplies)







(DCP-B7600D/DCP-B7620DW)

10.5 kg



(MFC-B7800DN/MFC-B7810DW)

12.0 kg





Noise Level



Sound Pressure *4



Printing









LpAm = 49 dB (A)







Printing

(Quiet Mode)







LpAm = 44 dB (A)







Ready







LpAm = 30 dB(A)





Sound Power



Printing *4







LWAc = 6.63 B (A)







Printing

(Quiet Mode)







LWAc = 6.12 B (A)







Ready







LWAc = Inaudible





Temperature



Operating







From 10°C to 32.5°C





Storage







From 0°C to 40°C





Humidity



Operating







20% to 80% (without condensation)





Storage







35% to 85% (without condensation)





Automatic Document Feeder (ADF)

(MFC-B7800DN/MFC-B7810DW)







Up to 50 sheets

For best results we recommend:





Temperature: 20°C to 30°C



Humidity: 50% to 70%



Paper: 80 g/m2

*1

Measured when the machine is connected using the same network connection as the ENERGY STAR Ver. 3.1 test method.

*2

Measured according to IEC 62301 Edition 2.0.

*3

Power consumption varies slightly depending on the usage environment.

*4

Measured in accordance with the method described in ISO 7779.

Document Size Specification









Document Size



ADF Width *1







105 mm to 215.9 mm





ADF Length *1







147.3 mm to 355.6 mm





Scanner Glass Width







Maximum 215.9 mm





Scanner Glass Length







Maximum 300 mm

*1

ADF models only

Print Media Specifications









Paper Input



Paper Tray

(Standard)



Paper Type







Plain Paper, Thin Paper, Recycled Paper, Thick Paper





Paper Size







A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, 16K (195x270 mm), A4 Short (270mm Paper)





Paper Weight







60 to 163 g/m2 *1





Maximum Paper Capacity







Up to 250 sheets of 80 g/m2 Plain Paper





Manual Feed Slot



Paper Type







Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick





Paper Size







Width:

76.2 to 215.9 mm



Length:

127 to 355.6 mm



Envelope:

COM-10, DL, C5, Monarch





Paper Weight







60 to 230 g/m2





Maximum Paper Capacity







One sheet at a time





Paper Output *2



Face Down Output Tray







Up to 120 Sheets (face down delivery to the face down output paper tray) *3





Face Up Output Tray







One sheet (face up delivery to the face up output tray)





2-sided



Automatic 2-sided Printing



Paper Type







Plain Paper, Thin Paper, Recycled Paper





Paper Size







A4





Paper Weight







60 to 105 g/m2

*1

For paper of 105 g/m2 and above, open the back cover to use the face up output tray.

*2

For labels, we recommend removing the printed sheets from the output paper tray immediately after they exit the machine to avoid the possibility of smudging.

*3

Calculated with 80 g/m2 in a temperate, non humid environment. Actual output tray capacity may vary depending on environmental conditions.

Fax Specifications



NOTE



This feature is available for MFC models.









Compatibility







ITU-T Super Group 3





Coding System







MH / MR / MMR / JBIG





Modem Speed







33,600 bps (with Automatic Fallback)





2-sided Print Receiving







(MFC-B7800DN/MFC-B7810DW)

Yes





Scanning Width







Maximum 208 mm





Printing Width







Maximum 207.4 mm





Greyscale







8 bit / 256 levels





Resolution



Horizontal







203 dpi





Vertical







Standard: 98 dpi





Fine: 196 dpi





Super fine: 392 dpi





Photo: 196 dpi







Address Book







(MFC-B7800DN/MFC-B7810DW)

200 Locations





Shortcut







(MFC-B7800DN/MFC-B7810DW)

10 locations





Groups







Up to 20





Broadcasting







(MFC-B7800DN/MFC-B7810DW)

260 Locations





Automatic Redial







3 times at 5-minute intervals





Memory Transmission







(MFC-B7800DN/MFC-B7810DW)

Up to 400 pages  *1





Out of Paper Reception







(MFC-B7800DN/MFC-B7810DW)

Up to 400 pages  *1

*1

‘Pages’ refers to the ‘ITU-T TestChart Document No.1’ (a typical business letter, Standard resolution, JBIG code).

Copy Specification









Copy Width







Maximum 210 mm





Sort Copy







Yes





Stack Copy







Up to 99 pages





Resolution







Maximum 600 x 600 dpi





First Copy Out Time *1







Less than 10 seconds at 23°C

*1

From Ready Mode and standard tray.

Scanner Specifications









Colour / Black







Yes / Yes





TWAIN Compliant







Yes(Windows 10 / Windows 11)







WIA Compliant







Yes(Windows 10 / Windows 11)





AirPrint Compliant







(DCP-B7620DW/MFC-B7800DN/MFC-B7810DW)

Yes

(macOS v11, v12, v13)





Colour Depth







30 bit colour Processing (Input)



24 bit colour Processing (Output)





Grey Scale







10 bit colour Processing (Input)



8 bit colour Processing (Output)





Resolution *2







Up to 19200 x 19200 dpi (interpolated)



Up to 1200 x 1200 dpi (from Scanner Glass)



Up to 600 x 600 dpi (from the ADF)  *1





Scanning Width







Maximum 210 mm

*1

ADF models only

*2

Maximum 1200 × 1200 dpi scanning with the WIA driver in Windows 10 and Windows 11 (resolution up to 19200 × 19200 dpi can be selected by using the scanner utility)

Printer Specifications









Automatic 2-sided Print







Yes





Emulation







PCL6, BR-Script3, PDF Version 1.7





Resolution







Up to 1200 x 1200 dpi





Print Speed *1 *2



1-sided Print *3







Up to 34 pages/minute (A4 size)

Up to 36 pages/minute (Letter size)





2-sided Print







Up to 16 pages/minute (Up to 8 sheets/minute) (A4 size)

Up to 17 pages/minute (Up to 8.5 sheets/minute) (Letter size)





First Print Time *4







Less than 8.5 seconds at 23°C

*1

The print speed may change depending on the type of document you print.

*2

The print speed may be slower when the machine is connected by wireless LAN.

*3

These print speeds are for 1-sided printing and measured in accordance with the ISO/IEC 24734 standard.

*4

From Ready mode and standard tray.

Interface Specifications









USB *1 *2







Hi-Speed USB 2.0

Use a USB 2.0 interface cable that is no more than 2 metres long.





LAN







(DCP-B7620DW/MFC-B7800DN/MFC-B7810DW)

10Base-T/100Base-TX *3





Wireless LAN







(DCP-B7620DW/MFC-B7810DW)

IEEE 802.11a/b/g/n (Infrastructure Mode)

IEEE 802.11a/g/n (Wi-Fi Direct®)

*1

Your machine has a USB 2.0 Hi-Speed interface. The machine can also be connected to a computer that has a USB 1.1 interface.

*2

Third party USB hub devices are not supported.

*3

Use a straight-through Category 5 (or greater) twisted-pair cable.

Supported Protocols and Security Features

Supported protocols and security features may differ depending the models.



Ethernet



10Base-T/100Base-TX



Wireless LAN (2.4GHz)



IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)



Wireless LAN (5GHz)



IEEE 802.11a/n (Infrastructure Mode), IEEE 802.11a/n (Wi-Fi Direct)



Protocols (IPv4)



ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server,CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), Syslog, SNTP Client,IMAP4,LDAP



Protocols (IPv6)



NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3, SMTP Client, FTP Client and Server, CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, Web Services (Print/Scan), Syslog, SNTP Client,IMAP4,LDAP



Network Security (Wired)



APOP*, SMTP-AUTH, SSL/TLS (SMTP, HTTP, IPP, POP3*, IMAP4*, FTP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), OAuth(SMTP, POP3, IMAP4), Kerberos

*When Internet FAX is downloaded.



Network Security (Wireless)



APOP*, SMTP-AUTH, SSL/TLS (SMTP, HTTP, IPP, POP3*, IMAP4*, FTP), SNMP v3, 802.1x ( EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), OAuth(SMTP, POP3, IMAP4), Kerberos

*When Internet FAX is downloaded.



Wireless Network Security



WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) (Wi-Fi Direct supports WPA2-PSK (AES) only)



Wireless Certification



Wi-Fi Certification Mark License (WPA3™ - Enterprise, Personal), Wi-Fi Protected Setup™ (WPS) Identifier Mark License, Wi-Fi CERTIFIED™ Wi-Fi Direct

Computer Requirements Specifications

Supported Operating Systems And Software Functions

For the latest supported OS, go to your model's Supported OS page at support.brother.com/os.



























Computer Platform & Operating System Version

PC Interface

Processor

Hard Disk Space to Install *1



USB *2

Wired LAN



Wireless LAN

For Drivers

For Applications

(including Drivers)





Windows 10 Home / 10 Pro / 10 Education / 10 Enterprise *4 *5



Printing

PC Fax *3

Scanning



32 bit (x86) or 64 bit (x64) processor



80 MB



1.8 GB





Windows 11 Home / 11 Pro / 11 Education / 11 Enterprise *4 *5



64 bit (x64) processor





Windows Server 2012



Printing

Scanning



Printing



64 bit (x64) processor



80 MB



80 MB





Windows Server 2012 R2





Windows Server 2016





Windows Server 2019





Windows Server 2022



macOS v11 *6



Printing

PC-Fax (Send) *3

Scanning



64 bit processor



N/A



500 MB



macOS v12 *6



macOS v13 *6





Chrome OS



Printing

Scanning



N/A



N/A



N/A

*1

An Internet connection is required to install the software if the installation disc is not supplied.

*2

Third party USB ports are not supported.

*3

PC-Fax supports black and white only.

*4

For WIA, 1200x1200 resolution. Brother Scanner Utility enables to enhance up to 19200 x 19200 dpi.

*5

PaperPort™ 14SE supports Windows 10 and Windows 11.

*6

macOS DisclaimerAirPrint capable: Printing, scanning, or PC faxing(Send) via macOS requires the use of AirPrint. Mac drivers are not provided for this machine.
