BRAND Firewire 6/4 1.8m
- Microstore cikkszám:
- Gyári szám: VIGI C450(2.8MM)
Mai rendelés esetén
🏪 Átvétel üzletünkben (Vecsés): júl. 13. (hétfő)
🚚 Házhozszállítás: júl. 14. (kedd)
📦 FoxPost csomagautomata: júl. 15. (szerda)
-
603 Ft
-
Nettó: 475 Ft
💡 Jó tudni: üzletünkben azonnal a „Raktáron” jelzésű termékek vehetők át, a többit rendelésére szerezzük be: az „1–2” és „2–3 munkanap” jelzésűek hazai raktárból érkeznek, a „3–14 nap” jelzésűek pedig általában külföldi partnereinktől — ezért hosszabb a beszerzési idejük. Amint a termék átvehető, értesítjük. Személyes átvétel előtt kérjük, várja meg ezt az értesítést, hogy biztosan ne jöjjön hiába — ha pedig sürgős, keressen minket bizalommal, szívesen segítünk!
KAMERA
Képérzékelő
1/2.7” Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Min. szükséges megvilágítás
0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Day/Night/Auto/Schedule-Switch
LENS
Type
Fixed Focal Lens
Focal Length
2.8/4 mm
Aperture
2.8 mm: F1.6
4 mm: F1.6
FOV
2.8mm:
Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°
4mm:
Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
Lens Mount
M12*P 0.5
DORI Distance
2.8 mm
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)
4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
VIDEO
Max. Resolution
2880 X 1620
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576,640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED
Quantity: 2
Range: 30m
Wavelength: 850nm
White LED
Quantity: 2
Range: 30m
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range
Pan: 0° to 360°, Tilt: 0° to 85°
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
120 dB
SNR
≥ 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
HANG
Hangkommunikáció
Two-Way Audio
Hangbemenet
Yes
Hangkimenet
Yes
Hangtömörítés
Yes
Audio Sampling Rate
8KHz
Environment Noise Filtering
Yes
Audio Bit Rate
64 Kbps(G.711 alaw)
HÁLÓZAT
Biztonság
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Szabvány
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network Storage
NAS (NFS, SMB/ CIFS)
API
Open Network Video Interface (Profile S)
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser
Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud
Yes
ONVIF
Yes
FIZIKAI KEZELŐFELÜLET
Hálózati csatlakozás
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm
N/A
Reset Button
Yes
Power
DC Power Port
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone
Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker
Yes
Audio
N/A
FIGYELMEZTETÉSI ÉS ESEMÉNYKEZELÉSI VEZÉRLÉS
Smart Event

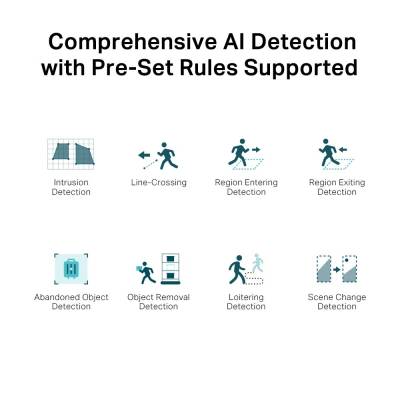

Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event
Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage
Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method
N/A
Output Notification
Message Push
DEEP LEARNING FUNCTION
Multi-Target-Type Detection
Supports Simultaneous Detection and Capture of Human Body and Vehicle
Face Capture
N/A
Face Comparison
N/A
ÁLTALÁNOS
Csomagolás tartalma
VIGI Network Camera
Quick Start Guide
Mounting Accessories
Operating Temperature
-30–60 °C
Storage Temperature
-40–60 °C
Storage Humidity
95% or Less (Non-Condensing)
Operating Humidity
95% or Less (Non-Condensing)
Material
Plastic
Net Weight
0.24 Kg
Gross Weight
0.4 Kg
Power Supply
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3at, class 0)
Power Consumption
Maximum: 9 W
Typical (Day Mode): 1.76 W
Typical (Night Mode with IR LED): 3.5 W
Typical (Night Mode with White LED): 3.8 W
Product Dimensions (L x W x H)
Φ123x84 mm
Certifications
CE, NTRA, VCCI, KC, BSMI, FCC, IC
