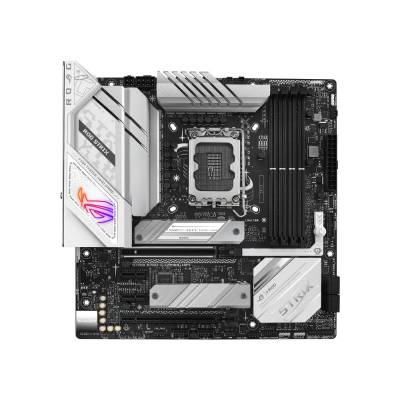

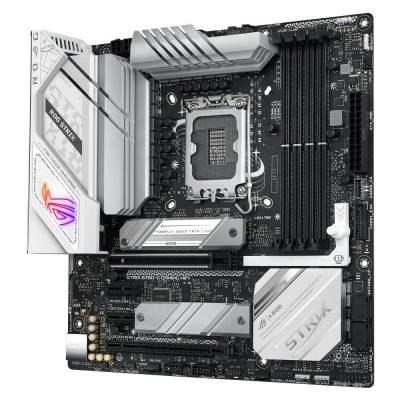

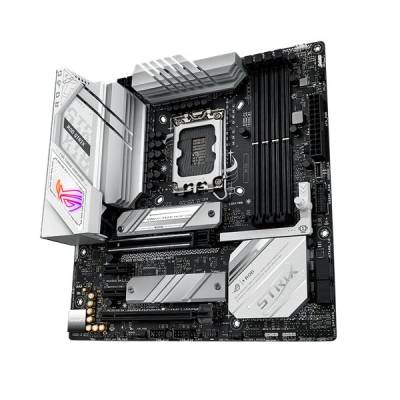

Asus ROG STRIX B760-G GAMING WIFI ROG STRIX B760-G GAMING WIFI

ROG STRIX B760-G GAMING WIFI







CPU



Intel® Socket LGA1700 for 13th Gen Intel®

Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®

Processors

Supports Intel® Turbo Boost Technology 2.0

and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support

list.

** Intel® Turbo Boost Max Technology 3.0

support depends on the CPU types.



Chipset



Intel® B760 Chipset



Memory



4 x DIMM slots, Max. 192GB, DDR5

7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*



Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile

(XMP)

OptiMem II

* Supported memory types, data rate(Speed),

and number of DRAM module vary depending on the CPU and memory configuration,

for more information refer to www.asus.com for memory support list.

* Refer to www.asus.com for the Memory QVL

(Qualified Vendors Lists).



Graphics



1 x DisplayPort**

1 x HDMI®***

* Graphics specifications may vary between

CPU types. Please refer to www.intel.com for any updates.

** Support 4K@60Hz as specified in

DisplayPort 1.4

*** Support 4K@60Hz as specified in HDMI

2.1.



Expansion Slots



Intel® 13th & 12th Gen Processors

1 x PCIe 5.0 x16 slot(s)

Intel® B760 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

2x PCIe 4.0 x1 slots

- To ensure compatibility of the device

installed, please refer to https://www.asus.com/support/ for the list of

supported peripherals.



Storage



Total supports 2 x M.2 slots and 4 x SATA

6Gb/s ports*

Intel® 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

(supports PCIe 4.0 x4 mode)

Intel® B760 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280

(supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports

SATA RAID 0/1/5/10.



Ethernet



1 x Intel® 2.5Gb Ethernet

ASUS LANGuard



Wireless & Bluetooth



Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth® v5.3

* WiFi 6E 6GHz regulatory may vary between

countries.



USB



Rear USB (Total 9 ports)

1 x USB 3.2 Gen 2x2 port(s) (1 x USB

Type-C®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x

USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector (supports USB

Type-C®)

1 x USB 3.2 Gen 1 header supports

additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header supports additional 4

USB 2.0 ports



Audio



ROG SupremeFX 7.1-Channel High

Definition Audio CODEC S1220A

- Impedance sense for front and rear

headphone outputs

- Supports: Jack-detection,

Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback

output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Premium audio capacitors

- Audio cover

* Due to limitations in HAD bandwidth,

32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.



Back Panel I/O Ports



1 x USB 3.2 Gen 2x2 port(s) (1 x USB

Type-C®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x

USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

1 x HDMI® port

1 x DisplayPort

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet

5 x Audio jacks

1 x BIOS FlashBack™  button



Internal I/O Connectors



Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

2 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB

Type-C®)

1 x USB 3.2 Gen 1 header supports

additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4

USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x 20-3 pin System Panel header with

Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4®) header



Special Features



Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA

[white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

-CPU

Socket lever protector

- ProCool

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- Aura RGB header

- Addressable Gen 2 header



Software Features



ROG Exclusive Software

- GameFirst VI

- ROG CPU-Z

- Sonic Studio III + Sonic Studio Virtual

Mixer + Sonic Suite Companion

- Sonic Radar III

- DTS® Sound Unbound

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- AURA Creator

- AURA Sync

- Fan Xpert 4

- Two-Way AI Noise Cancelation

- Power Saving

AI Suite 3

- Performance And Power Saving Utility

- DIGI+ VRM

- PC Cleaner

MyAsus

Norton 360 for Gamers (60 days free trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

MemTest86



BIOS



256 Mb Flash ROM, UEFI AMI BIOS



Manageability



WOL by PME, PXE



Accessories



Cables

2 x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x Rubber Package(s) for M.2

1 x Q-Latch package(s) for M.2

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

Documentation

1 x User manual



Operating System



Windows® 11, Windows® 10 64-bit



Form Factor



9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
