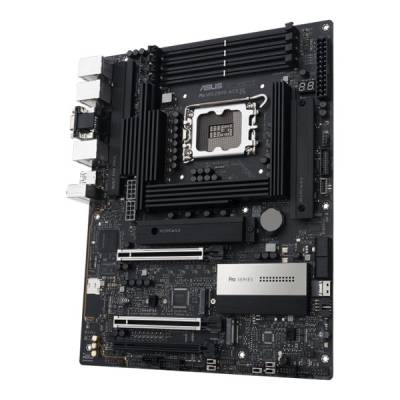

ASUS Alaplap S1851 PRO WS Z890-ACE SE INTEL Z890, ATX PRO WS Z890-ACE SE

Model




Pro WS Z890-ACE SE



News & Updates


Please visit our GLOBAL website to check and download the latest updates.


CPU


Supports Intel® Core™ Ultra Processors (Series 2) , LGA1851Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to https://www.asus.com/support/download-center/ for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.


Chipset


Intel® Z890 Chipset


Memory


4 x DIMM slots, max. 256GB, DDR5Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureSupports DIMM FitSupports DIMM FlexSupports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III (AEMP III)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.* *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.


Graphics


1 x HDMI™ port**1 x Intel® Thunderbolt™ 4 port (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***1 x VGA port from AST2600* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.**Supports 4K@60Hz as specified in HDMI 2.1.***In ThunderboltTM  4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.**** VGA resolution support depends on processors' or graphic cards' resolution.******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.


Expansion Slots


Expansion Slots Intel® Core™ Ultra Processors (Series 2)*2 x PCIe 5.0 x16 slots*** (supports x16 or x8/x8 modes)**Intel® Z890 Chipset**1 x PCIe 4.0 x16 slot (supports x4 mode)**** Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.


Storage


Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports*Intel® Core™ Ultra Processors (Series 2)M.2_1 slot (Key M), type 2260/2280  (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe4.0 x4 mode)Intel® Z890 Chipset**M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)SlimSAS_1 slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. **4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.**SlimSAS port connected to a U.2 device via a transfer cable does not support VMD/RST.


Ethernet


1 x Marvell® AQtion 10Gb Ethernet1 x Intel® 2.5Gb Ethernet1 x Realtek 1Gb Ethernet dedicated for AST2600


USB


Rear USB (Total 8 ports)1 x Thunderbolt™ 4 port (1 x USB Type-C®)1 x USB 20Gbps port (1 x USB Type-C®)6 x USB 10Gbps ports (6 x Type-A)Front USB (Total 7 ports)1 x USB 20Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers supports 4 additional USB 2.0 ports


Audio


Audio"Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*"Audio Features- Audio Shielding- Premium audio capacitors


Back Panel I/O Ports


Back Panel I/O Ports 1 x Thunderbolt™ 4 USB Type-C® port1 x USB 20Gbps port (1 x USB Type-C®)6 x USB 10Gbps ports (6 x Type-A)1 x HDMI™ port1 x Marvell® AQtion 10Gb Ethernet port1 x Intel® 2.5Gb Ethernet port1 x Realtek 1Gb Ethernet dedicated for AST26002 x Audio jacks1 x BIOS FlashBack™ button1 x Clear CMOS button


Internal I/O Connectors


1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header5 x 4-pin Chassis Fan headers1 x W_PUMP+ headerPower Related1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorStorage Related4 x M.2 slots (Key M)4 x SATA 6Gb/s ports1 x SlimSAS portUSB1 x USB 20Gbps connector (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 header supports 4 additional USB 2.0 portsMiscellaneous1 x Chassis Intrusion header1 x COM Port header1 x CPU Over voltage jumper1 x Front Panel Audio header (F_AUDIO)1 x 10-1 pin Front System Panel header1 x Thermal Sensor header1 x Thunderbolt™ (USB4®) header1 x SPI TPM header (14-1 pin)1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header5 x 4-pin Chassis Fan headers1 x W_PUMP+ headerPower Related1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorStorage Related4 x M.2 slots (Key M)4 x SATA 6Gb/s ports1 x SlimSAS portUSB1 x USB 20Gbps connector (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 header supports 4 additional USB 2.0 portsMiscellaneous1 x Chassis Intrusion header1 x COM Port header1 x CPU Over voltage jumper1 x Front Panel Audio header (F_AUDIO)1 x 10-1 pin Front System Panel header1 x Thermal Sensor header1 x Thunderbolt™ (USB4®) header1 x SPI TPM header (14-1 pin)


Special Features


ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- LANGuard- Overvoltage protection- SafeSlot Core+- Stainless-steel back I/OASUS Q-Design- M.2 Q-Latch- Q-Release Slim (with PCIe SafeSlot)- Q-Code- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- CPU Socket lever protector- ProCool II- SafeSlot- SafeDIMMBespoke Motherboard Design & Business Focused Features- 24/7 reliability- Overcurrent protection


Software Features


ASUS Exclusive SoftwareArmoury Crate- Fan Xpert 4- Power SavingASUS DriverHubTurboV CoreASUS CPU-ZAdobe Creative Cloud (Free Trial)Norton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash  - ASUS MyHotkeyNPU Boost


Remote Management Features


IT Management software supported- ASUS Control Center Express(ACCE)BMC Related1 x BMC switch1 x BMC debug UART header1 x BMC LAN fixed IP switch1 x IPMI switch1 x Message LED header1 x microSD card socket1 x Location LED header1 x Location button header1 x PSU_SMB header1 x SMART_PSU switch1 x VGA switch1 x VPP_I2C headerBMC LED Design- 1 x BMC LED


BIOS


256 Mb Flash ROM UEFI AMI BIOS(text-based)


Manageability


WOL by PME, PXE


Accessories


Cables2 x SATA 6Gb/s cablesMiscellaneous1 x AMI license sticker1 x I/O shield2 x M.2 Q-Latch packages2 x M.2 rubber packages1 x Q-connectorDocumentation1 x ACC Express activation key card1 x Quick start guide


Operating System


Windows 11  (22H2 & later), Windows 10 64-bit(21H2 & later)


Form Factor


ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
